Help finding replacement balances

A quick learner from Hamden, CT says:
September 25, 2017

Greetings!

Both the coil balances were discovered to be broken in our ten year old window. Could you help up in determining the proper replacements?

Sincerely,

Patrick

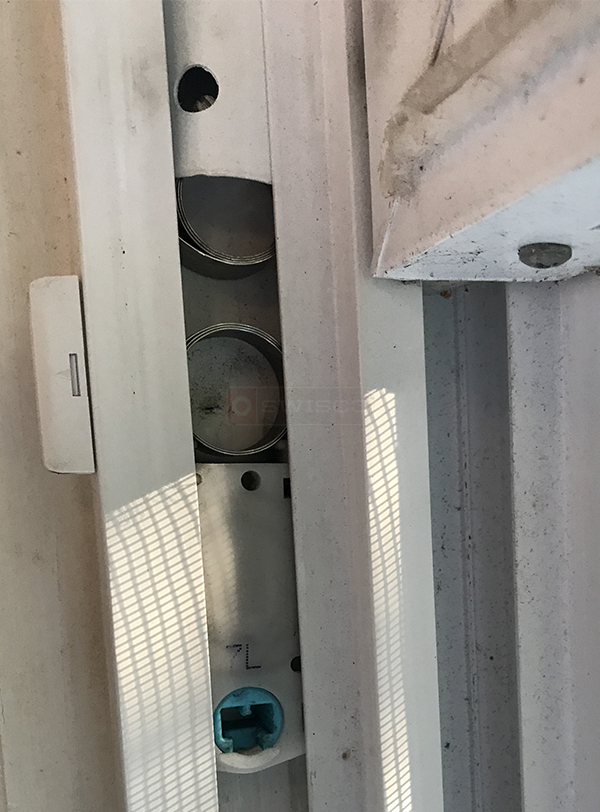

Coil balanced stamped 7L
Profile picture of Paul
Paul from SWISCO responded:
September 29, 2017
It looks like the coil in your 15-087 coil pivot housing is broken, and the 15-086 tandem coil spring housing is missing from the other coil springs. You can re-use your old 15-087 coil housing pivot, but you will need a new 15-086 coil housing, an S180-3 and an S180-4 coil.
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
Tandem Coil Housing
Tandem Coil Housing
15-086
$1.68
Mounting Bracket
Mounting Bracket
16-024
$0.66
3 lbs Series 180 Coil Balance
3 lbs Series 180 Coil Balance
S180-03
$4.20
4 lbs Series 180 Coil Balance
4 lbs Series 180 Coil Balance
S180-04
$4.20
