Help finding replacement for KAREY storm window corner tilt key

A home owner from USA says:

Trying to find triple track storm window top corner tilt key to replace KAREY broken ones. Can you suggest replcements? Will need several left/right sets.

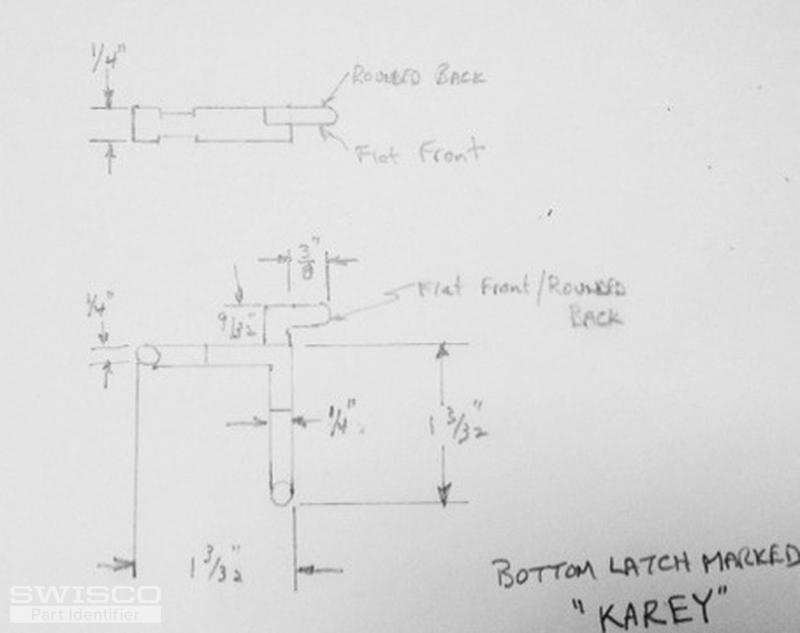

Was unable to select and copy photos from my iPad using the "ADD PHOTO". Will send a separate regular email to your help@swisco.com with photos and dimensioned drawing of the part. Thanks for your help.

Bill

Thumbnail of the uploaded file named image1 (1).jpeg
Thumbnail of the uploaded file named image2 (1).jpeg
Thumbnail of the uploaded file named image3 (1).jpeg
Thumbnail of the uploaded file named image4 (1).jpeg
Thumbnail of the uploaded file named image5.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

Unfortunately, this part has been discontinued and there are apparently none left on the market. Currently, our best recommendation would be to take a 91-176 and modify it to fit your needs. Take a look at the dimensions to determine if you could use our corner latch to replace yours. Thank you!

A home owner from New Jersey says:
Have you been able to confirm whether the 91-176 work as a replacement for the discontinued Karey storm window slide bolts?
Profile picture of Paul
Paul from SWISCO responded:

Parts for Karey storm sashes are no longer available, unfortunately. The corner and housing for the latch should fit, but you will need to grind or file down the latch tip to fit the notches in the main frame of the window.
