Hello,

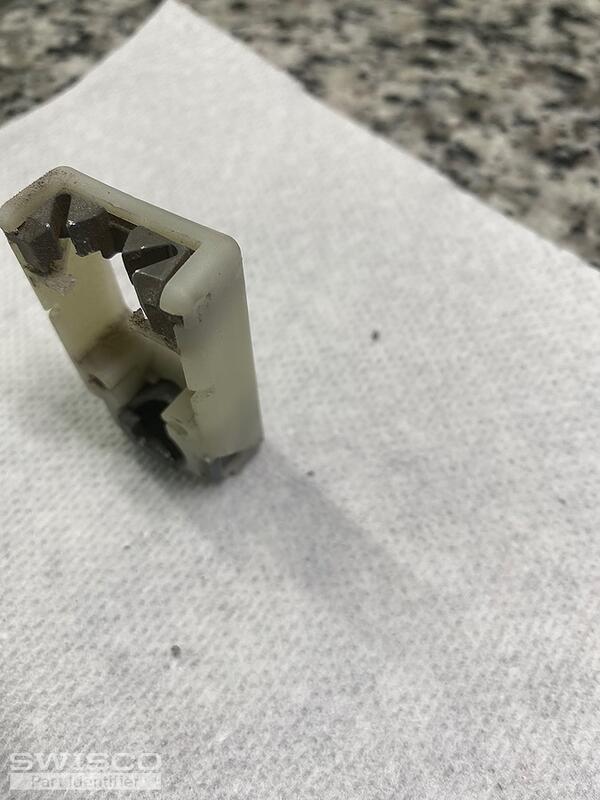

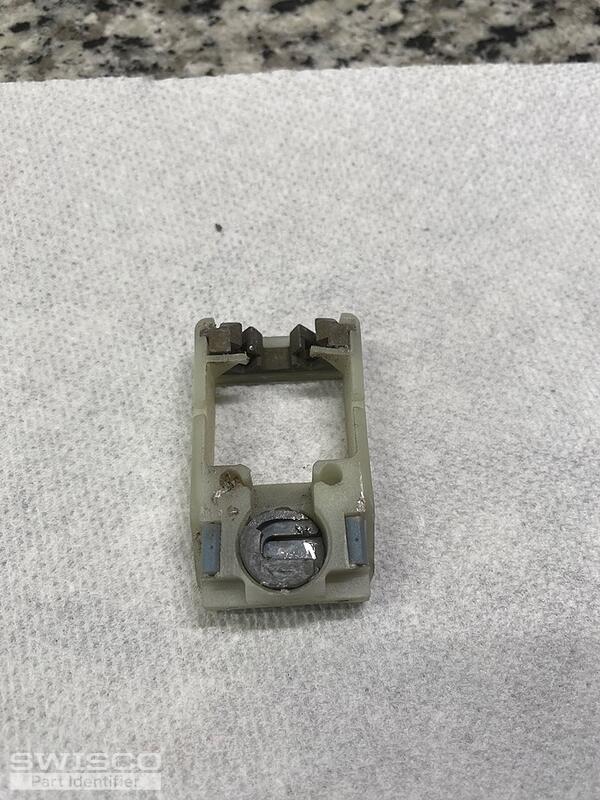

I'm trying to replace the pivot shoes on some old vinyl windows and am having trouble finding one that will work.
2 1/16" height
1 1/4" - 1 5/16" wide (varies depending on where on shoe measured)
1/2" - 9/16" thick (varies same as width)
So with those specs I didn't know if it's better to get the smaller measurement or the larger and would like some assistance.
Thank you
Help finding replacement pivot shoe
Handy Person from Michigan
May 17, 2023 1:56 pm
5 user uploaded images
2 Replies
Tom from SWISCO
May 18, 2023 12:15 pm
Hello! This pivot shoe looks like a great match for our 15-188. The dimensions also seem close, but you will need to pin down the width and thickness. Figure that these measurements are to help you determine whether or not it will fit in the track, so you want to measure the total width and total thickness.
Alternate image for 15-188
