Help getting replacement coil sash balance

Hi CJ,

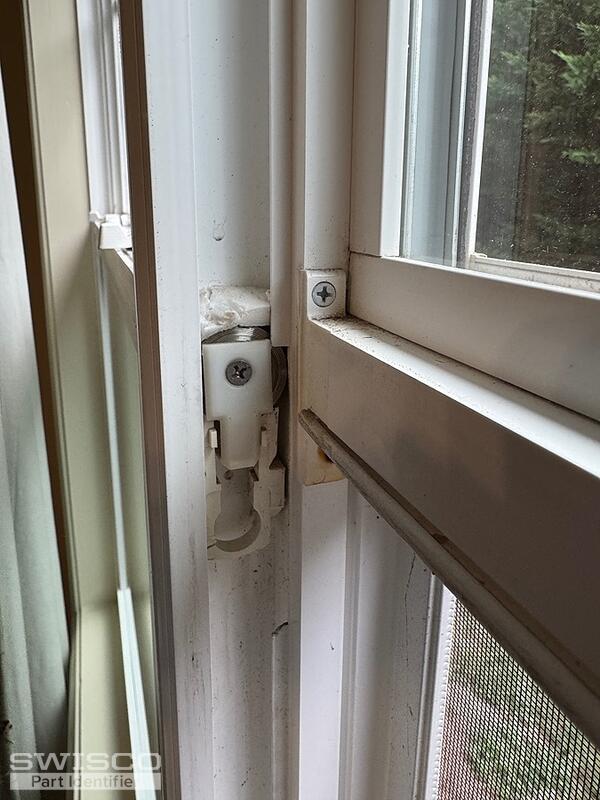

Thanks for your post! This balance shoe is the 15-180 Coil Balance Shoe. While I am confident it is the correct replacement, you'll need to make sure to double check the dimensions to confirm it will be a fit in the track.

Alternate image for 15-180

The Series 190 Coil Balance Spring is the compatible balance, attached to the shoe using the 33-073 screw. It appears yours is stamped with an 8, so you'll need the S190-840. You'll need to be sure to double check the stamps on the other five windows to determine the coils needed for those assemblies.

The 15-186 Coil Balance Clip and 15-182 Balance Bushing are used to anchor the coils to the window track. The 15-181 is used for assemblies that require a double coil setup.
