Help getting the right part

Start a new Discussion

Home Owner from Middleburg Heights, Ohio

Jul 31, 2018 4:37 pm

I need help identifying the correct part/size. I need 2 of these for my window.
Extra info is series 6350 SH MTL-4

3 user uploaded images

6 Replies

Tom from SWISCO

Aug 7, 2018 10:30 am

I'm pretty sure we can help, but I can't tell what your dimensions are from your photos. It's hard to make out from just a tape measurer. It looks like your width is less than 1", maybe 15/16". Can you confirm? Can you also tell me what the thickness is? It's too unclear.

In the meantime, see our 15-134, 15-173, and 15-212 to see if any of these match up to your pivot shoe.

Home Owner from Middleburg Heights, Ohio

Aug 7, 2018 8:15 pm

The 15-212 was a spot on only a little longer. I was able to insert them correctly. My issue now is when I go to reattach the spring cord to the shoe itself it slides the pivot shoe up all the way to the top of the bottom shash. If that makes sense and this is after locking the pivot shoe in place before attaching the cord. Any suggestions?

Home Owner from Middleburg Heights, Ohio

Aug 8, 2018 6:53 am

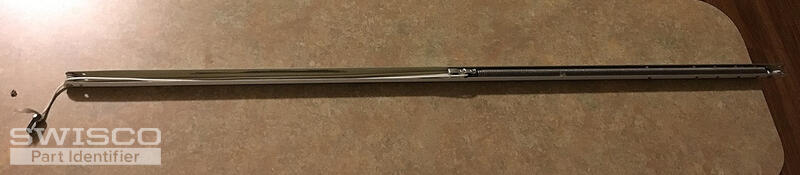

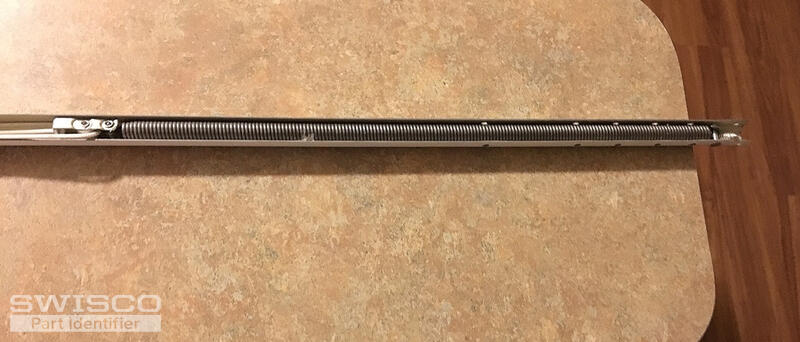

Do I need new window balances? This is the 28? can you help me find the right one? In a bit of a time crunch. Thank you.

2 user uploaded images

Tom from SWISCO

Aug 8, 2018 9:01 am

It looks like you have a Series 770 balance. If your channel is 28" you can go for the S770-28.

Home Owner from Middleburg Heights, Ohio

Aug 9, 2018 6:45 am

I got everything working. Thank you so much for you help!!!
