Help identifying top sash guide

Handy Person from Templeton California

Jul 13, 2024 6:38 pm

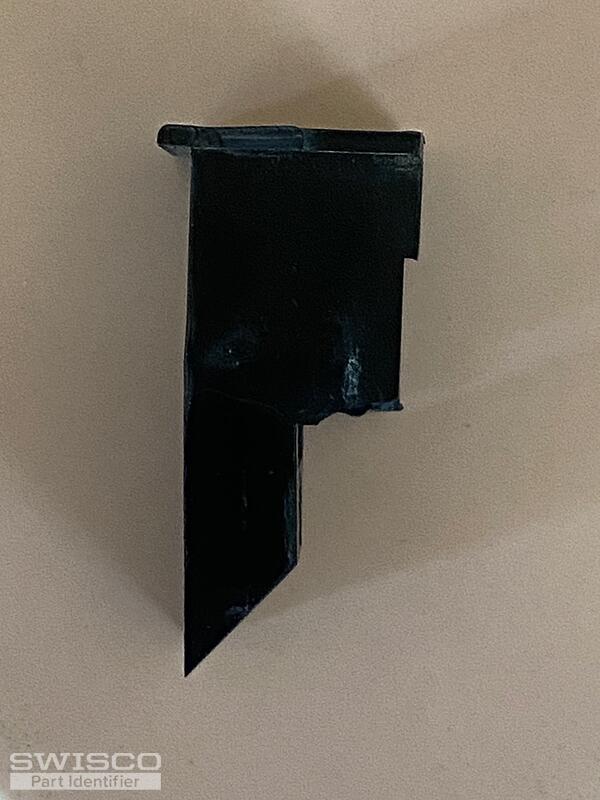

This top sash guide came off my window and I can't find it anywhere. It's broken so I'm unsure of the top square measurement. I ordered item number 18-172 and it is smaller than mine. Mine is about 3/4" thick where the one I ordered is 1/2". Please help!

4 user uploaded images

3 Replies

+ Add a Comment

Casey from SWISCO

Jul 15, 2024 3:06 pm

EXPERT

Hello,

We have recommended the 18-172 as a possible replacement for top sash guides like yours in the past. To clarify, are you referring to the 19/32" backset of the top of the guide shown below, which measures 3/4" on your part?

Detail of 18-172

Side view of 18-172

Handy Person from Templeton California

Jul 15, 2024 5:15 pm

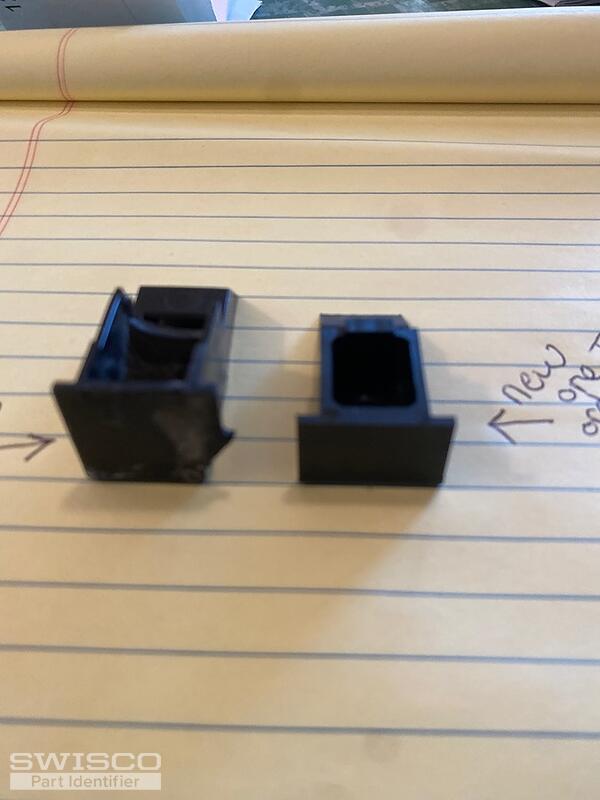

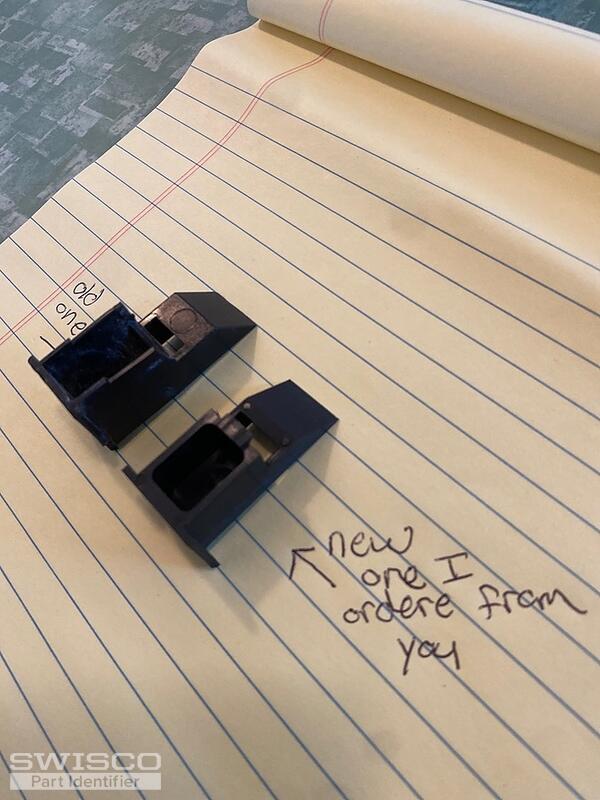

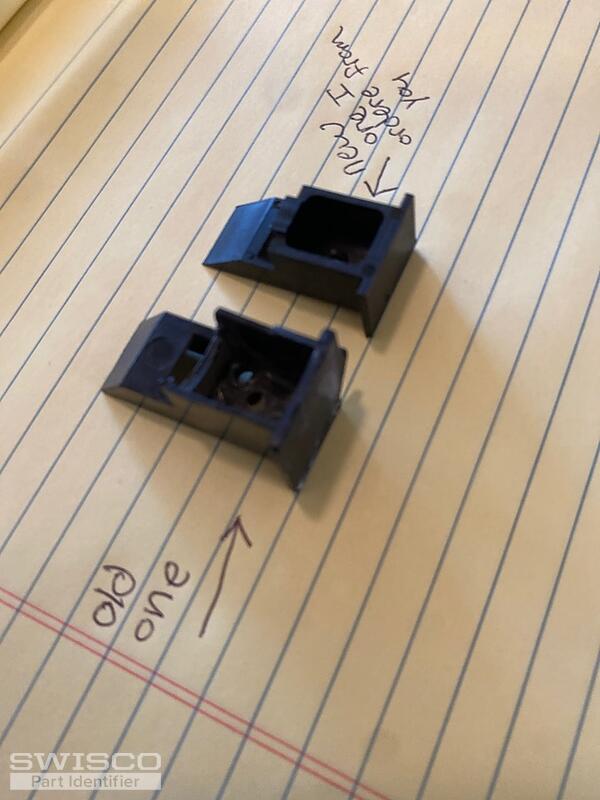

That's what I already ordered from you and they are too small. ( I ordered 18-172) Do you have any other suggestions?
Thanks

3 user uploaded images

Casey from SWISCO

Jul 16, 2024 8:42 am

EXPERT

I'm sorry for the confusion. I understand that you already purchased the 18-172 but we would need to confirm exactly which dimension differs on your part compared to the measurements included in our last post to determine if we could supply a closer match.
