Help identify part to buy

Quick Learner from Centennial Colorado

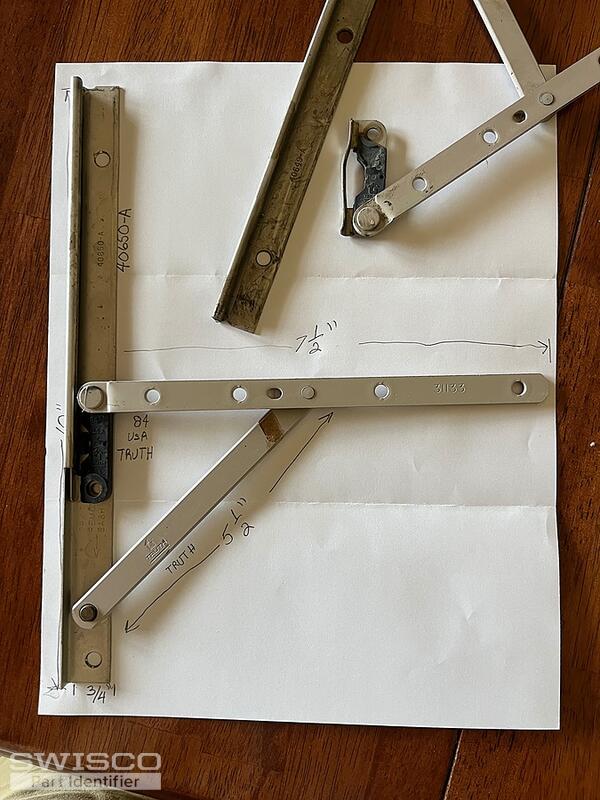

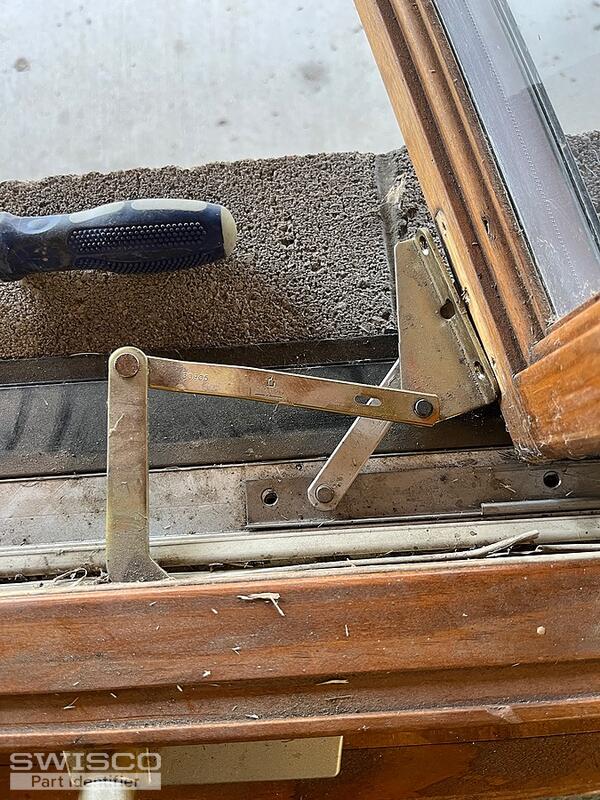

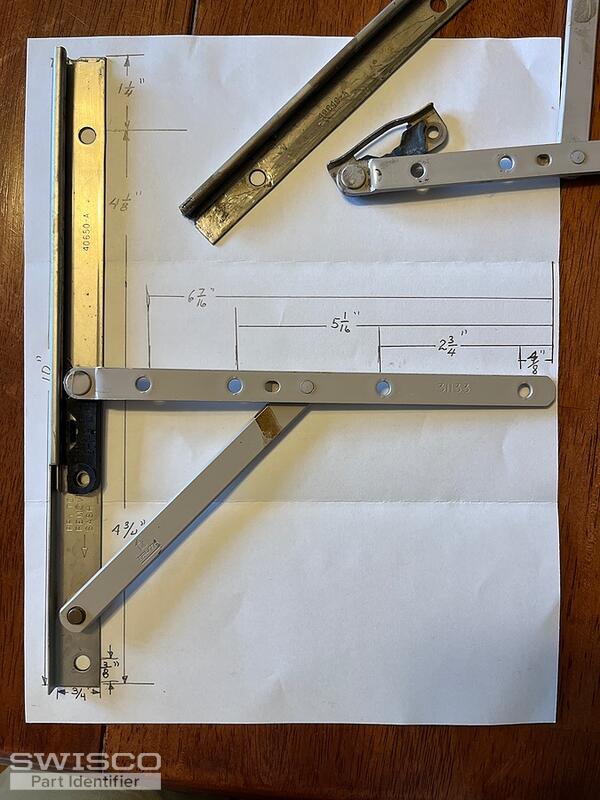

I need the top and bottom sash bracket for a "Weathershield" window operator. The dimensions are noted on the picture. I think the part number is 40650A
3 user uploaded images
3 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hey there,

Thanks for writing in! Your casement window hinge can be replaced with the 36-048 2-Bar Hinge Set. I am confident this is what you need but be sure to double check them with those shown on the diagram below.

This set can be used to repair both the top and bottom hinges on either the left or right side of the window.

Detail of 36-048
Detail of 36-048

Additional dimensions for 36-048
Additional dimensions for 36-048

Quick Learner from Centennial Colorado
That is exactly it! You are Awesome!
