Hello,
Please help identify windows balance. Once identified I need to purchase 2 of those.
Please see images attached.
1. What is the length measurement of only the metal portion of your balance? Answer : 26 5/8"
2. Is this for a Non-Tilt Window or Tilt Window? Answer: window is not tilted.
3. What is the Stamp on your balance? (Please send a close and clear photo.) Answer: 26 5 BSI PL , please see image attached.

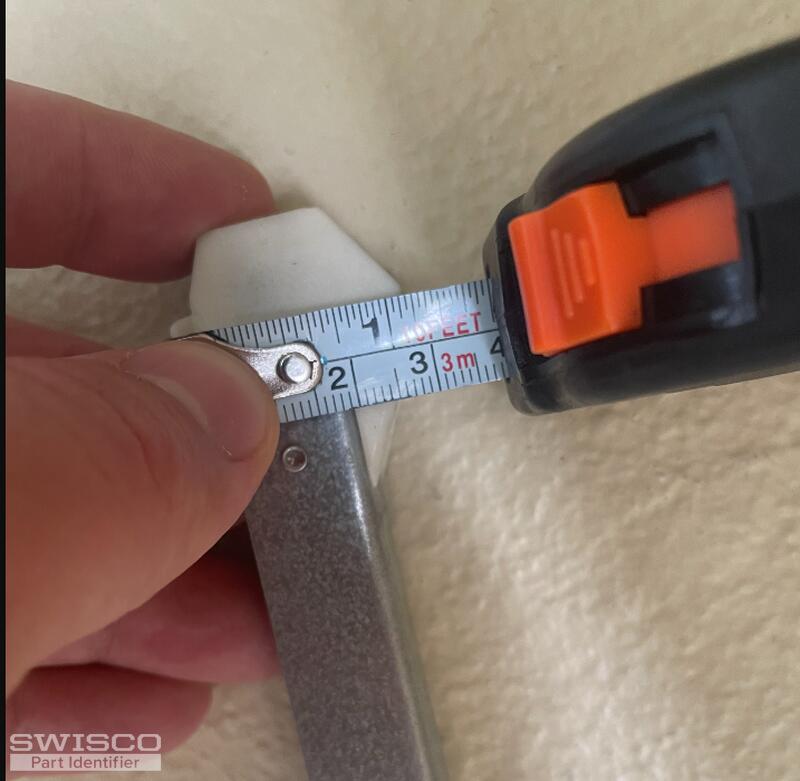

3. What is the Width of your balance? Answer : 1"
4. Does the top fitting have Tabs? (Please send a close and clear photo.) Answer: Not sure about this one. Please see images attached previously
5. Does the bottom fitting have Tabs? (Please send a close and clear photo.) Answer: Not sure about this one. Please see image attached
Help identify window balance
Quick Learner from USA
May 19, 2023 9:04 am
4 user uploaded images
2 Replies
Tom from SWISCO
May 22, 2023 9:05 am
Hello! We can definitely supply this balance, but it has to be a custom order due to its configuration. What you have here is an "extended travel" type balance, named for its extra-long cord. The giveaway is the fact that the pulley wheel is built inside the shoe itself.
Thankfully, your photos tell us everything we need to get started. What I'll do is email you a purchase link and price quote that you can use to place an order on our site.
Please let me know if I can be of any other assistance and I'd be happy to advise.
