Help identifying a sash spring assembly

A quick learner from USA says:
November 3, 2016
Dear Sirs

Could you help me identify the sash spring in the attached picture? It
is from a vinyl window with tilt sashes possibly in the late 80s or 90s.
I have two that have failed and need replacing.

Thanks
Dan

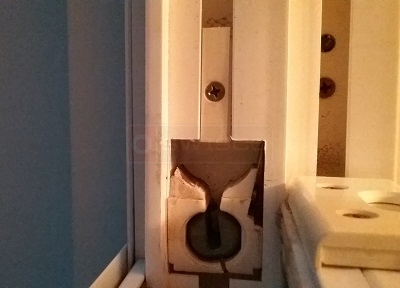

User submitted a photo of a pivot shoe.
Profile picture of Tom
Tom from SWISCO responded:
November 8, 2016
Hello, Dan! I've made a list of possible replacement parts you can consider, which can be viewed on the right side of this page. If you also need springs, see our Series 170 and Series 171 coil balances.
LH Tilt Window Latch, 1-7/16"
LH Tilt Window Latch, 1-7/16"
26-288
$3.35
RH Tilt Window Latch, 1-7/16"
RH Tilt Window Latch, 1-7/16"
26-289
$3.35
CertainTeed Pivot Shoe
CertainTeed Pivot Shoe
15-192
$6.39
CertainTeed Lance Spring Cover, Wide
CertainTeed Lance Spring Cover, Wide
15-156
$1.75
CertainTeed Balance Drum
CertainTeed Balance Drum
15-157
$1.70
CertainTeed Pivot Bar, Pair
CertainTeed Pivot Bar, Pair
26-175
$7.78
CertainTeed Lance Spring Cover, Narrow
CertainTeed Lance Spring Cover, Narrow
15-185
$1.75
