Help identifying part

Question

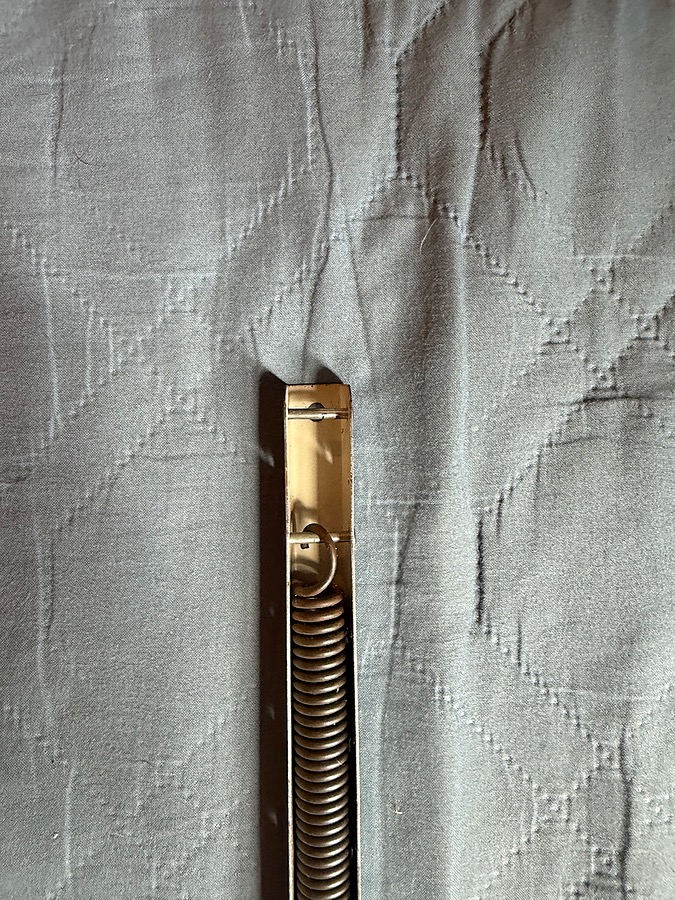

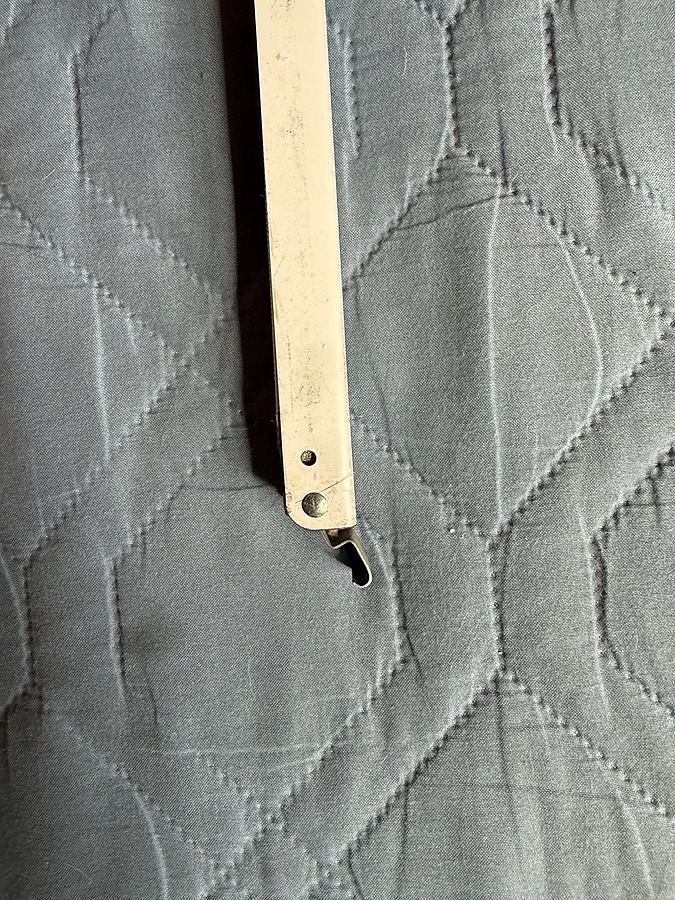

He'llo, I could use some help finding the proper replacement part. It's 22 in by 1/2 in, is a pulley spring combination on the back, and has 22B BSI printed on the side. Thanks for the help!

Tom · Accepted Answer

Thanks so much for reaching out. I believe we can supply this balance, but only as a custom order due to this configuration. Let me break it down for you.

To start, we would use our S770-22 channel balance as a base. This has the same block and tackle configuration as your original, as well as the same spring rating system, but it differs in how it installs in the window. That's where the necessity of a custom order comes in. We will make two major changes:

We would replace the top plastic screw-way with a rivet to allow you to reuse the original hook.
We would replace the square terminal clip at the bottom with our 15-170 snap-on clip. That will allow it to connect to your old pivot shoe.

Does that look good to you? If so, please let me know how many you wanted to buy and I will email you a custom purchase link and price quote. You can use that to place an order on our site at your convenience.
