Help identifying parts

A handy person from Summerville, SC says:
April 8, 2021

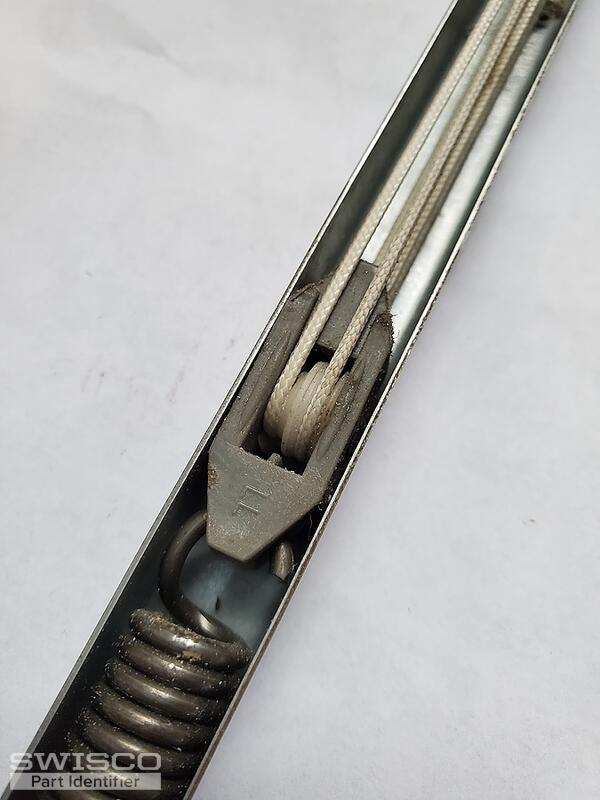

26-7 I have attached multiple photos. I believe I have a t-lock balance system. What length do I need. The part is marked 26 but measures 27".

Thumbnail of the uploaded file named 16179217876561368450681340568662.jpg
Thumbnail of the uploaded file named 16179218453622856499878671020170.jpg
Thumbnail of the uploaded file named 16179218831102176853078444428073.jpg
Thumbnail of the uploaded file named 1617922042304516255927030279568.jpg
Profile picture of Tom
Tom from SWISCO responded:
April 13, 2021

I think you have an older model of our S795-27, one that uses an older and outdated rating system. I recommend weighing your sash on a scale to confirm which S795-27 stamp option will work best for you.

I also recommend purchasing our 15-195B open cam shoe separately, since this appears to match your original. You can swap it out once you get them, it's very easy. The video below shows you how.
1-1/4" T-Lock Balance Shoe, Open Cam
1-1/4" T-Lock Balance Shoe, Open Cam
15-195B
$1.97
How to Install a T-Lock Shoe on a Channel Balance
How to Install a T-Lock Shoe on a Channel Balance
VIDEO
WATCH >
Modifying the Series 795 Balance
Modifying the Series 795 Balance
GUIDE
READ >
Classifying Channel Balance Fittings
Classifying Channel Balance Fittings
GUIDE
READ >
