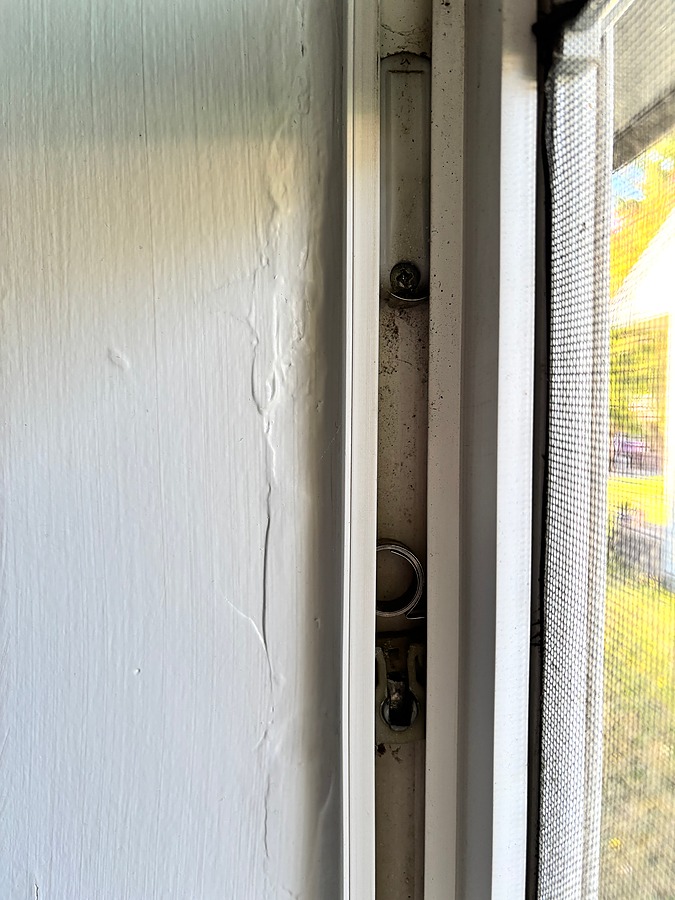

Hello! I have a small window that won't stay up and I'm looking for help getting replacement parts for both sides. The coil has a marking that looks like #4 5. The bottom has what appears to be 95 and D. The top part has the following engraved on the back:
PAT. # S 5.232.208-5.365.638
6.584.644.B2
FAS: 10245
Thanks,
- Marshall
Help identifying parts
Home Owner from Seattle, WA
Oct 5, 2026 6:43 pm
4 user uploaded images
3 Replies
Home Owner from Seattle, WA
Oct 5, 2026 8:15 pm

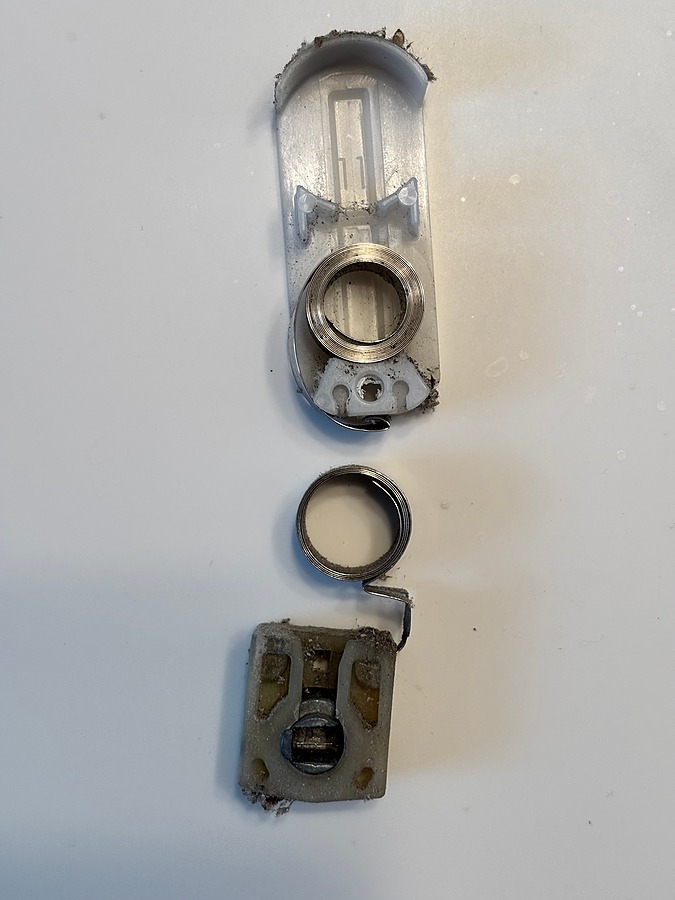

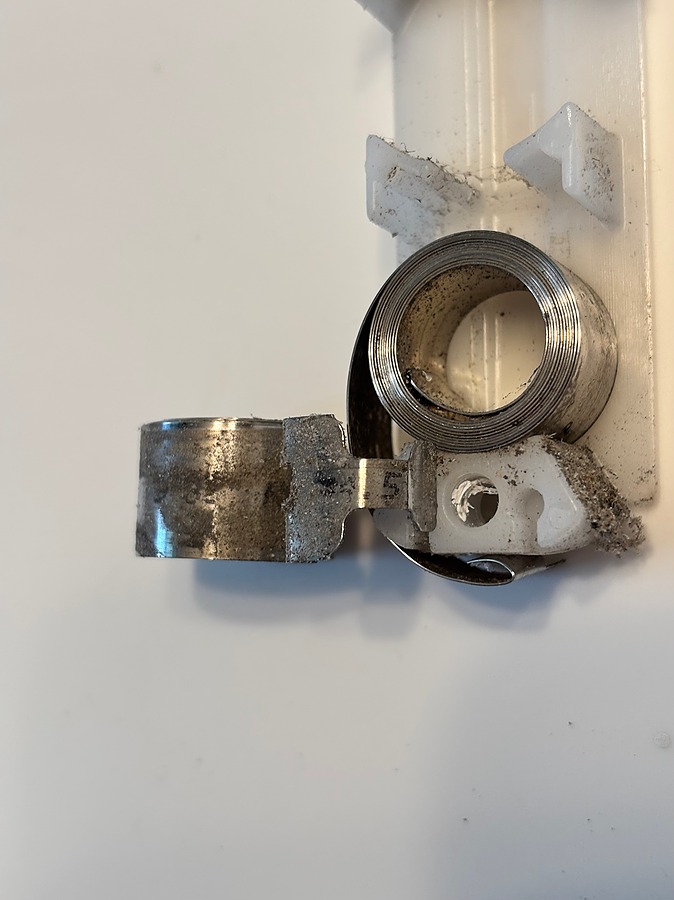

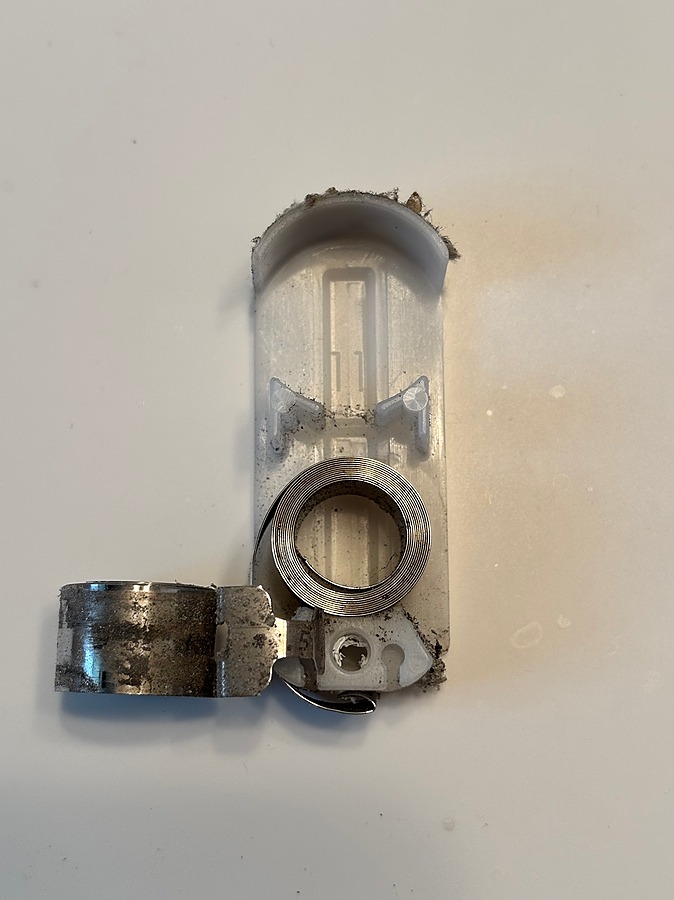

Here's the left side. It's similar but the number is more visible as #4.5.

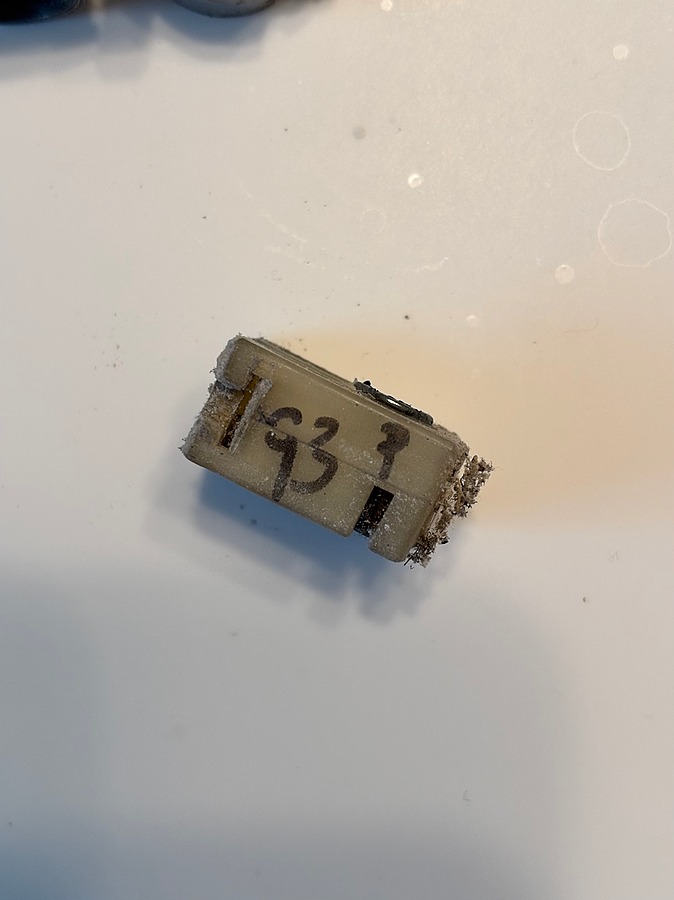

The bottom part has written on it what looks like 93 and then a P
The bottom part has written on it what looks like 93 and then a P
4 user uploaded images
Jasmine from SWISCO
Oct 7, 2026 1:00 pm
Hi Marshall,
Thanks for writing in. Your balance shoe seems to be a match for the 15-263 Titan Coil Balance Pivot Shoe. These are compatible with the Series 196 Coil Balance. Since yours are marked with a #4.5, you'll need the S196-4; be sure to double check that both coils have this marking.
The coil support can be replaced with the 15-260 Titan Dual Support.
Dimensions for 15-263
