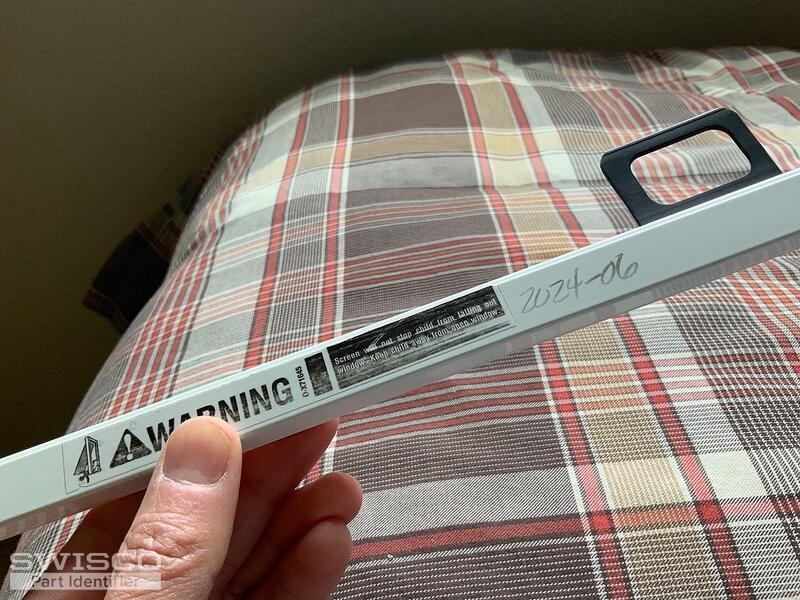

There are no numbers or markings on the corners themselves. The frame has the this number on the sticker D-X71645.
Dimensions;
Length from corner to end of insert tip - 2 1/4"
Width of insert tip 5/16"
Depth of insert - 7/16"
The insert end has a tab that lines up and inserts into frame - the depth at the tab is - 9/16"
The corner has a small recess on the non-screen mount side to match the frame profile.
The screen mount side is open so that the screen can be installed in the corners.
Thank You in advance!
Dave
Help identifying replacement window screen frame corners
Home Owner from Fort Collins, colorado
Apr 8, 2021 3:32 pm
5 user uploaded images
3 Replies
Paul from SWISCO
Apr 13, 2021 11:39 am
Hello, Dave. We have the 95-266 corner key in Euro White. It is used for 3/8" screen frames. The inside leg is 5/16" thick and the short height is 3/8"and the long height is 9/16". The expose corner key is 3/8" wide by 11/16" high. Look it over and see what you think.
Quick Learner
Apr 17, 2021 9:50 am
Thanks you very much Paul. I may try to keep looking for a bit since mine are white. If I still have no luck these may work. Thank you again for your response and information.
Dave
Dave
