Hi Swisco,

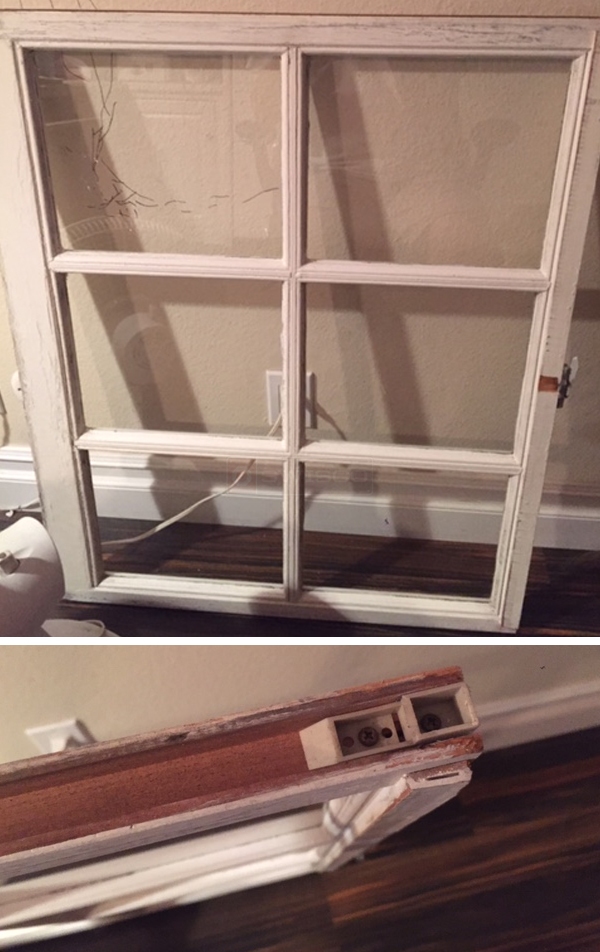

Could I get your help identifying the correct balancer and spacer for this window, here are the details?
Wood window 28" high overall
Weight is 12 lbs
Slot for balancer is 11/16"
Plastic spacer is 9/16" and 2 1/4" long
Let me know your thoughts, I appreciate the help.
Help identifying sash balancer
Home Owner from USA
Sep 13, 2017 9:13 am
9 Replies
Paul from SWISCO
Sep 18, 2017 4:42 pm
To start, it is next to impossible to identify a balance without seeing the originals, so we have our work cut out for us. If there's not an identical window elsewhere in the house that still has its balances, the best we can do is guess. Considering that your sashes are wood, the balance may not be something we can get at all, unfortunately.
That being said, here's a guess. The 18-008 top sash guide is often used with Series 380 side-load balances. I haven't seen it used with a wood sash, though. To verify this, are there any other wood windows in the house with a side-load balance? We usually would compare the length between the old balance and the new one. If not, I'll try to figure out the balance length, but I'll need the height of the visible glass from the bottom of the sill.
That being said, here's a guess. The 18-008 top sash guide is often used with Series 380 side-load balances. I haven't seen it used with a wood sash, though. To verify this, are there any other wood windows in the house with a side-load balance? We usually would compare the length between the old balance and the new one. If not, I'll try to figure out the balance length, but I'll need the height of the visible glass from the bottom of the sill.
Contractor from Laguna Hills, Ca
Sep 18, 2017 5:22 pm
Hi Paul
The distance from the bottom of the window to the glass is 3". From the wear marks on the wood i guesstimate the length of the balancer is 24"
The distance from the bottom of the window to the glass is 3". From the wear marks on the wood i guesstimate the length of the balancer is 24"
Paul from SWISCO
Sep 21, 2017 12:19 pm
Thanks! In that case, you can consider our S380-24 channel balance. You will need to weigh the sash to determine the proper stamp option. However, please keep in mind that this is just an educated guess. I can't say for sure if this will work for you.
Quick Learner from California
Sep 21, 2017 4:12 pm
Thanks for your help, the sash weighs 12lbs
Tom from SWISCO
Sep 22, 2017 10:58 am
The S380-24 with a 2320 option is best to hold a 12 pound sash.
Quick Learner
Sep 23, 2017 2:05 am
I was looking at the sash balance guide recommended for the S380 balancers and they are different than mine. I believe mine are the 18-008. Can you make sure that is ok, the measurements are exact for mine and the 18-008's. Thank you so much for your help.
Paul from SWISCO
Sep 26, 2017 10:52 am
Your 18-008 top sash guide can be used with Series 380 balances, don't worry.
Contractor from CA
Sep 27, 2017 12:44 am
Thanks for your help gentlemen, i will get them on order.
