Hello,
I am looking for replacement balances for the faulty unit shown in the attached photos. I also need the plastic piece that screws into the side of the sash window.
Please see the following information to help identify the parts:

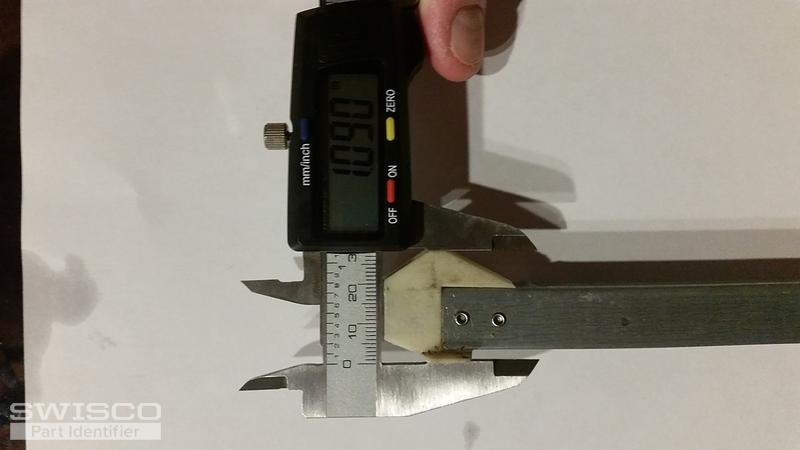

Length of metal part (excluding plastic parts): 32.75"
Width of U section: 0.588"
Markings on metal: 32 5 B.S.I PM

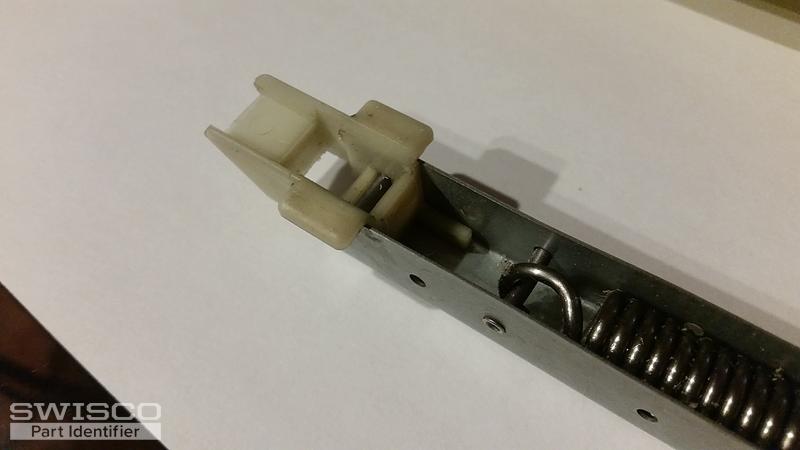

Markings on lower plastic piece: PAT 6598264
Sash window weight: 31 lbs
QTY Required: 4 X Window Balance, 4 X Plastic hook that screws into the sash window
Thank you!
James
Help identifying window balance with marking 32-5 / QTY needed: 4
Handy Person from Modesto, CA
Apr 18, 2019 3:04 am
5 user uploaded images
4 Replies
Tom from SWISCO
Apr 18, 2019 12:57 pm
Hello to you as well, James. We can definitely supply the balance, but it will have to be a custom order due to its unique configuration. Please just give us a little time to confirm its availability and I'll get back to you ASAP with an order link and price quote.
As for the top sash guide in your first photo, that'd be our 18-171.
Handy Person from Modesto, CA
Apr 18, 2019 4:50 pm
Hi Tom, thanks for the quick reply.
The top sash guide looks perfect. I look forward to ordering when you're ready with the quote.
James.
The top sash guide looks perfect. I look forward to ordering when you're ready with the quote.
James.
Tom from SWISCO
Apr 19, 2019 9:37 am
Awesome! It just so happens that I'm ready right now. Thanks for waiting while I confirmed everything. I'll go ahead and email you that order link right now.
