Help in obtaining replacements

Home Owner from Santa Rosa, California

Mar 15, 2017 5:17 pm

Hi Could you please help me to find replacements for my 15" block and tackle window balances?

I would greatly appreciate any help you may be able to render

Best Regards,
Jeff F

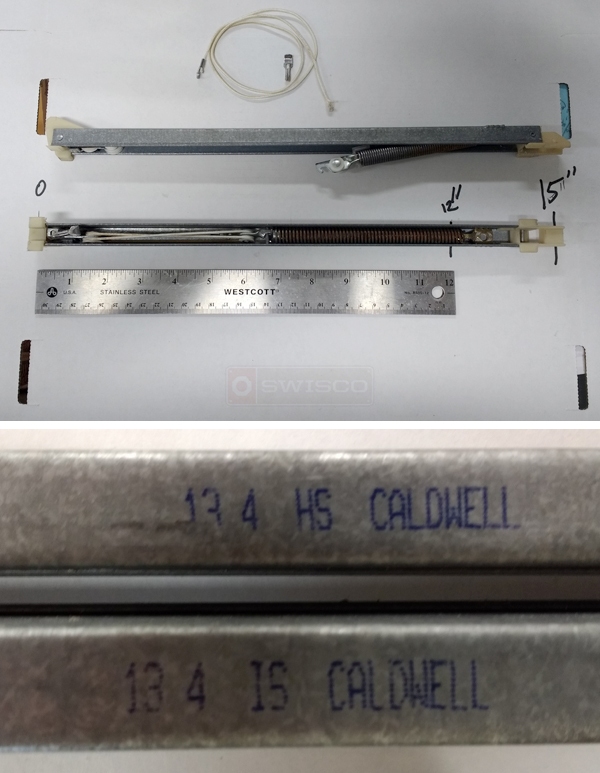

User submitted photos of a window balance.

8 Replies

Paul from SWISCO

Mar 22, 2017 11:39 am

I would consider our S385-14 channel balance. Based on your stamp, the metal channel should be 14" long, not 15". I would double check that just in case.

Quick Learner from Santa Rosa, CA.

Mar 22, 2017 4:39 pm

Thank you Paul.
You are correct the metal part does measure 14".
I included the plastic ends when I initially measured them!

Quick Learner

Mar 22, 2017 6:21 pm

How do you determine the weight for the spring option to place the order?
Thank you in advance.
Jeff

Casey from SWISCO

Mar 24, 2017 3:49 pm

Your stamp "13 4" normally translates to 1340
To check, remove and weigh your window sash; a pair of 1340 will carry a window sash weight range of 11-12 pounds.

Quick Learner from Santa Rosa, CA.

Mar 24, 2017 4:30 pm

Thank you Donna.
Have a great weekend!

Quick Learner from Santa Rosa, CA.

Mar 28, 2017 2:21 pm

Hi Donna,
I just weighed my sash and it only weighs 7 lbs!
I checked this against another scale.
I called Swisco and the gentlemen I spoke with said a 1320 was necessary to carry the 7 lb sash.
I do not understand why the balance stamp in my photo clearly show "13 4" which you indicate translates into a 1340 balance which you say carries an 11-12 lb sash when the window only weighs 7 lbs??? Could you be mistaken?
Thanks
Jeff

Tom from SWISCO

Mar 29, 2017 12:47 pm

I'm not sure either. It's possible whoever installed these balances to begin with installed the wrong ones. You can see the chart on our S385-14 store page that shows you how much weight each option can carry. This information comes from the factory itself, where these springs are calibrated, so I promise they are accurate.
