Help me find this pivot shoe

A quick learner says:
August 5, 2013
Help I can't find the part to fix my windows. Here are some pictures of the parts to 4 of my windows that will not stay up. Will you please help me. the spiral rod is 28 3/8 inches long and 3/8 in diamiter. The part that is broken is 1" X 2". My delima is that I didn't see anything that looked like the broken part.

Thanks,

CJ

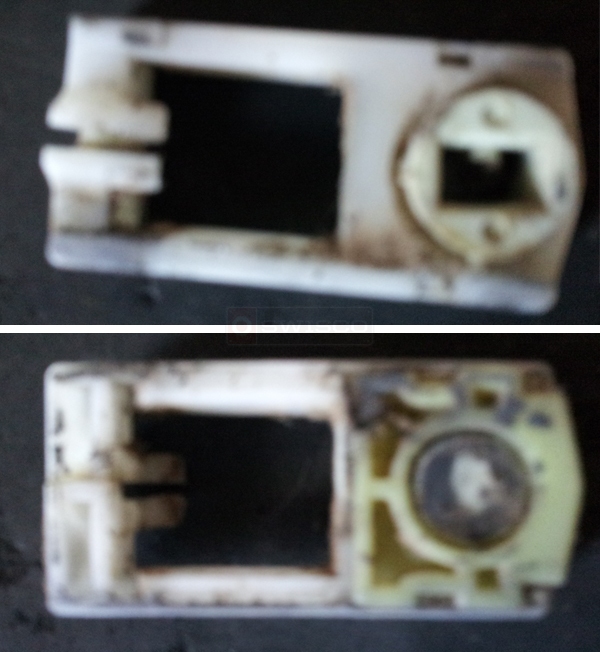

User submitted photos of a pivot shoe.
Profile picture of Tom
Tom from SWISCO responded:
August 6, 2013
Thank you for posting. I assume the width of this part is 1", but what is the thickness? That will help us find a good replacement for you.
A quick learner says:
August 14, 2013
it is 1/2 inch thick
Profile picture of Tom
Tom from SWISCO responded:
August 15, 2013
Thank you! This appears very similar to our 15-173. Carefully compare it to your own hardware and let me know if you agree.
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-173
$2.72
