Help me identify this part

A home owner from USA says:
January 13, 2021

Help me identify this part. I need 2 of them, tilt window pivot lock shoes I believe, the full mechanism, both top and bottom pieces to fix both sides of a window.

https://www.swisco.com/cl/Tilt-Window-Replacement-Pivot-Lock-Shoes

Thank you

John

Thumbnail of the uploaded file named 6EF35676B97A48549EB4C38DAB1FAC08.jpg
Thumbnail of the uploaded file named 043FDB9A0A154A33BFF7DAE149E66CF8.jpg
Thumbnail of the uploaded file named 991D2B90913B4484AE9467CA0180757C.jpg

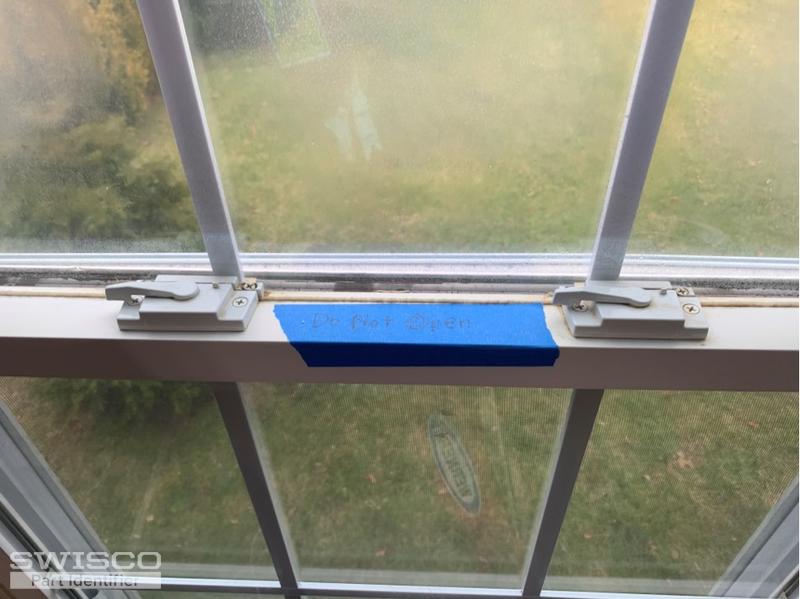

Thumbnail of the uploaded file named 497794BD4FE148AF9FBA55657EAD9F22.jpg
Profile picture of Bob
Bob from SWISCO responded:
January 14, 2021

Hey John. This looks like a 15-087 Pivot Shoe, which uses Series 180 Coil Balances. Please provide the exact weight of the window sash if you're uncertain of the spring weights you need. Also, can I see the pivot bar that fits into this coil balance's cam? Ours has a slightly different shaped cam, so I want to ensure they're compatible. Many thanks.
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
