Help me to identify the right balance
Home Owner from Florida
Dec 5, 2019 12:00 am

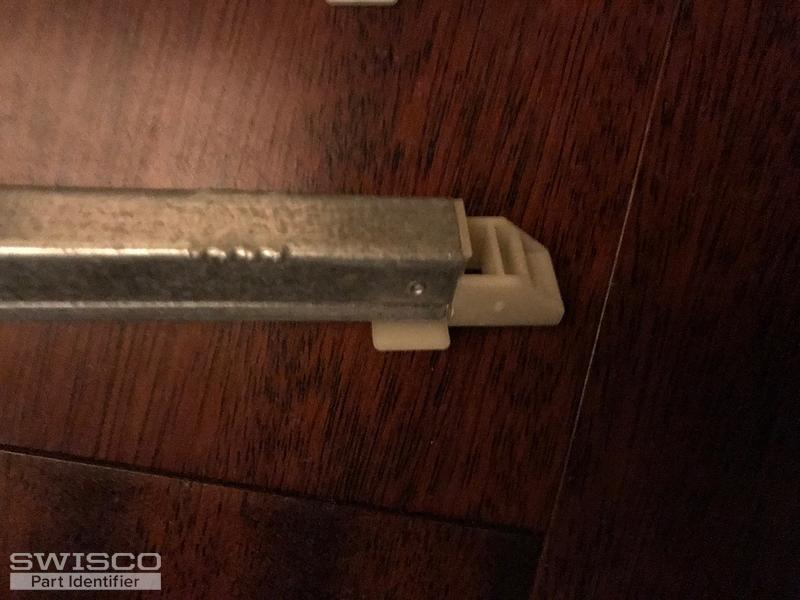

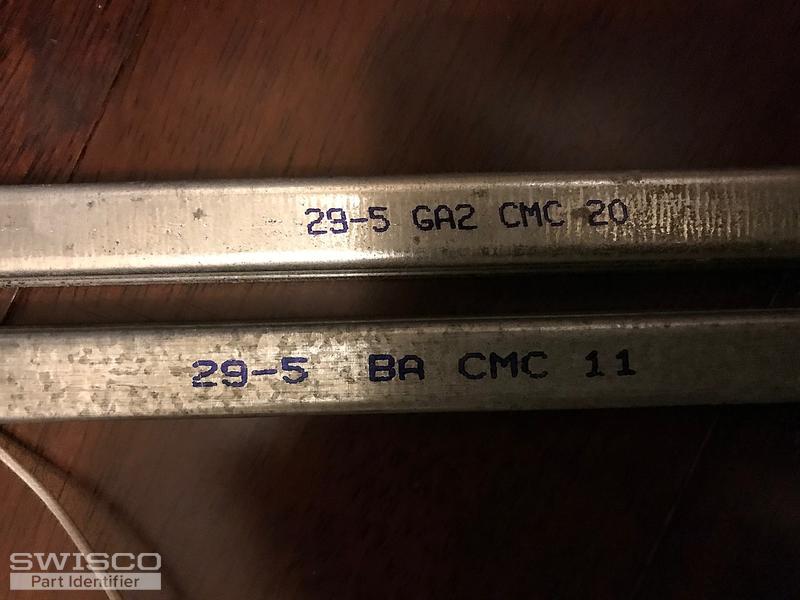

I need 8 pairs of these balance. The part number is showing in the picture. They show different numbers, but they all actually look the same to me. The two plastic ends look the same. Can you help me to identify which part I need to buy? Thanks a lot!
5 user uploaded images
4 Replies
Paul from SWISCO
Dec 5, 2019 12:39 pm
Your balance closely resembles both our S380-30 and S385-30. The only difference between these two balances is the depth measurement of the bottom balance shoe. The depth measurement of the bottom shoe is 1" and for the Series 385 is 1-3/32". Measure the depth of your bottom shoe, like in the diagram below, to determine which balance would make a better match. whichever one chosen will go with the 2950 option.
Alternate view of 15-004
Home Owner from Florida
Dec 5, 2019 2:54 pm
Thanks for the quick reply. What is 2950 option?
Paul from SWISCO
Dec 5, 2019 3:15 pm
It is the stamp option that corresponds to your stamping of "29 5" which holds a sash weight of 28-32 pounds.
