Help needed to identify a part

Home Owner from Florida

Dec 31, 2019 8:03 pm

Hi,

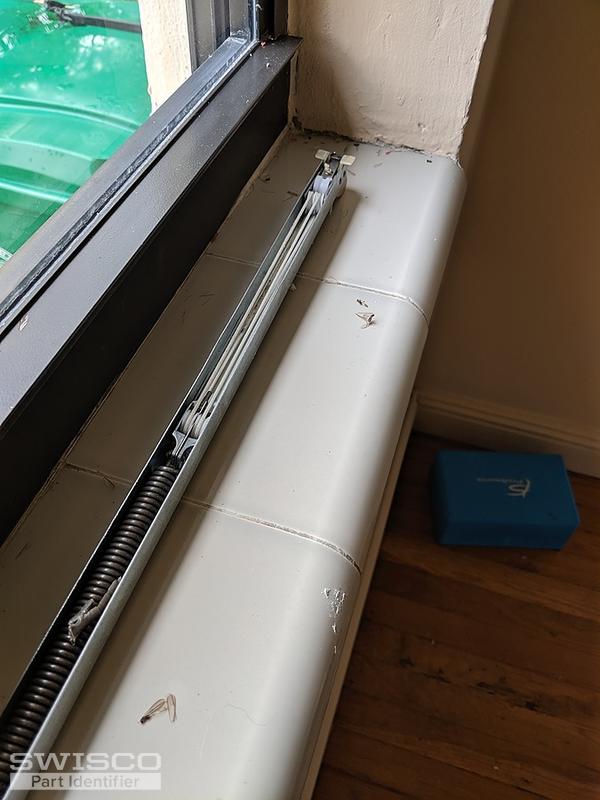

Please see the attached photos. Which part is this? I have a bunch I need to replace on impact windows. If your company sells the part...can you share how to ensure I buy the correct part for the weight of the window. Thank you!

4 user uploaded images

4 Replies

Bob from SWISCO

Jan 2, 2020 9:26 am

Thanks for writing in. I am pretty confident we can replace this balance for you; but that stamp code is pretty unique. Can you give us the exact weight of your window sash? That will determine the best way to proceed. Thanks.

Home Owner from Florida

Feb 2, 2020 4:28 pm

Thank you for your reply. The window sash weighs 35 pounds.

Bob from SWISCO

Feb 4, 2020 11:43 am

Thanks for getting back to me. One last point is the 'depth', or heel-to-toe measurement, of the bottom nylon shoe. We believe your shoe depth is likely the same as our 15-004, which is 1-3/32" deep, but double-check this before ordering to be certain. I have sent you a custom link to order (2) 24" balances, stamped 23DS 37. If you need a different amount, let me know before ordering, Also let me know if you have any other questions, and if that shoe depth is indeed different. Thanks.
