Help replacing tilt latches

Quick Learner from NW Virginia

Feb 13, 2022 9:16 pm

I need a total of 8 of these.

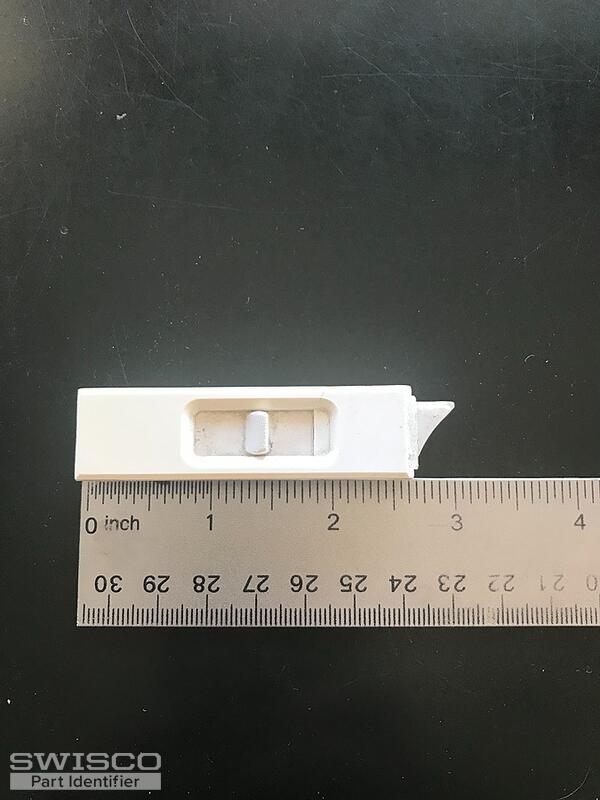

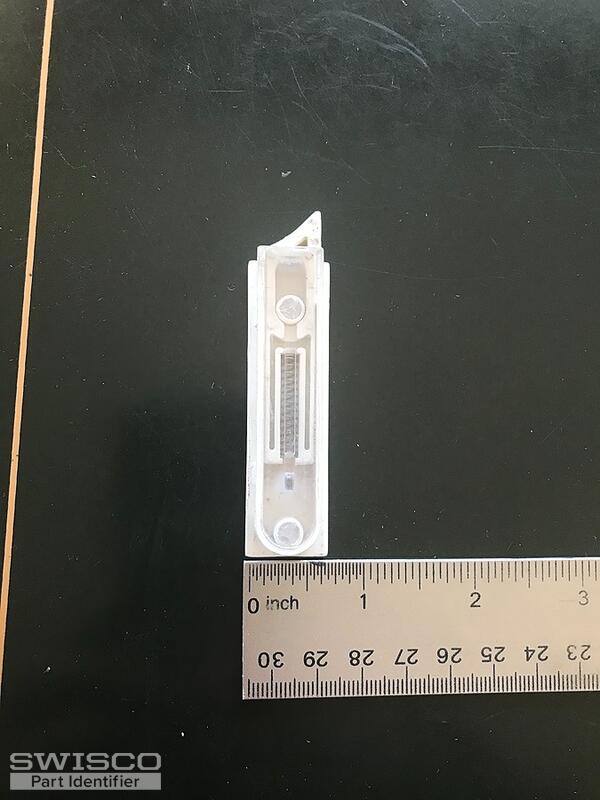

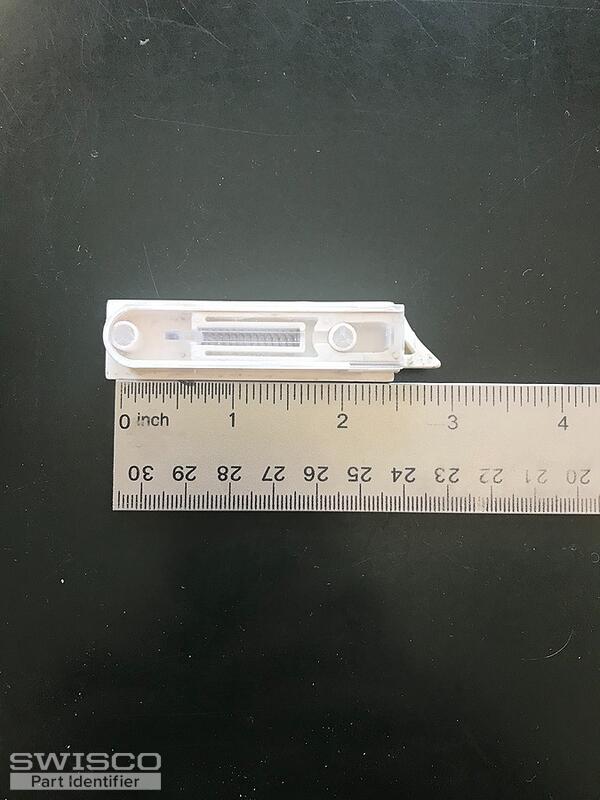

These are the pictures of those that need to be replaced. No, they are all not LH but I would like to confirm that the size is that of 26-390 or 26-391.

Thanks!

3 user uploaded images

2 Replies

Paul from SWISCO

Feb 15, 2022 10:27 am

Hello,

Your original latches are no longer available but we suggest the 26-243 and 26-244 as a replacement. The top measures 11/16" wide by 2-5/8" long, while the depth is 3/8".

The depth of 26-390 and 26-391 is 5/16". Look over these parts and see what you think. Thanks for posting!
