Help to identify all these parts

Quick Learner from Blythewood, SC

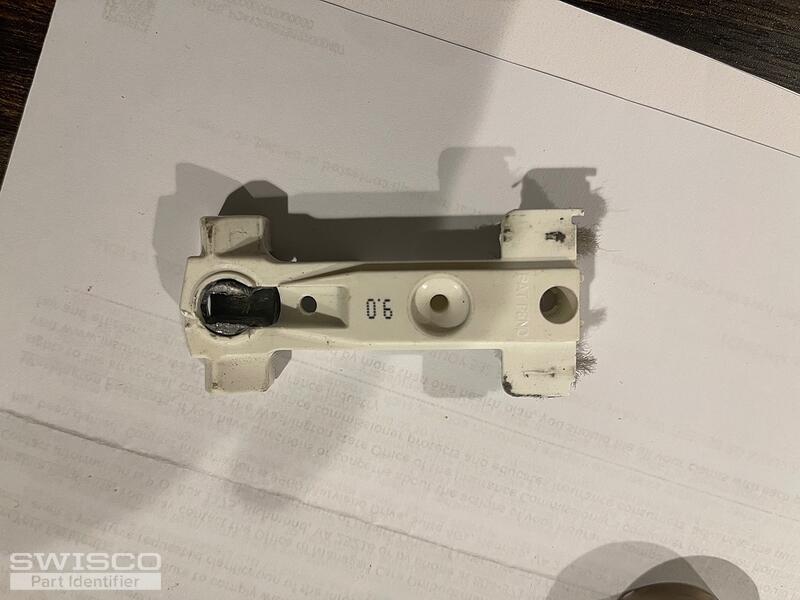

The white piece that has the coil wrapped around it normally says 9.0

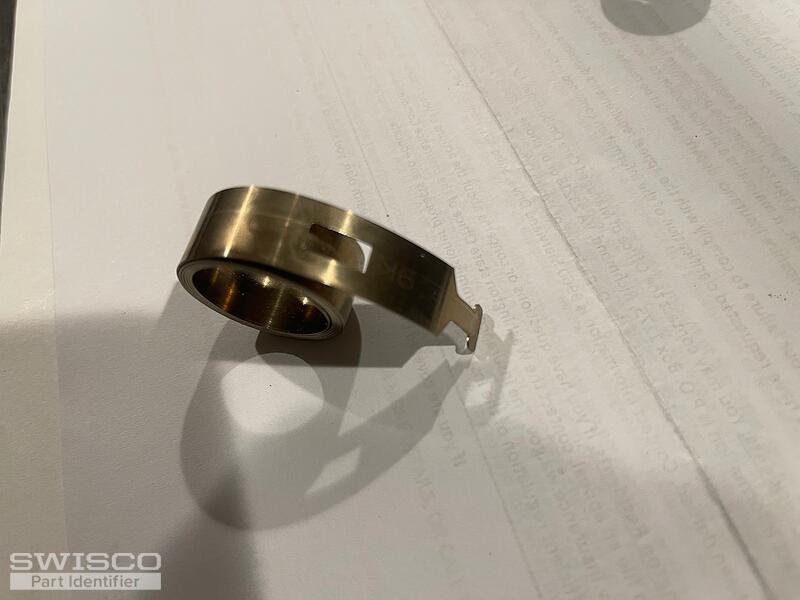

The coil itself says 9K BD
The little black piece has a 4 on it
The metal post has 3 holes and says 2318
The clear piece with one hole in the center has an E on it
Thabk you in advance, I really need your help.
5 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your coil balance support resembles the 15-251. See the 1/2" thick S160-09 coil springs used with this assembly. As for the pivot bar and mounting bracket, take a look at the 26-360 and 16-033. We'll include the specifications from our product pages below to confirm they match your original hardware. Thanks for posting!

Measurements of 15-251
Measurements of 15-251

Alternate image for 26-360
Alternate image for 26-360

Dimensions for 16-033
Dimensions for 16-033

Quick Learner from Blythewood, SC
Thank you so much, the coil balance support you recommended is 2 inch longer than the original but all of the other measurements are the same. Will that be a problem?
Casey
Casey from SWISCO
SWISCO
Expert

The height shouldn't be an issue as long as the rest of the measurements match. Just let us know if you have any other questions.
