I have some vinyl non-tilt single hung windows that I believe were made by Milgard Windows. Looking at your website I believe they used S385 channel balances, but with all the variety, I would like confirmation.
Measurements are:
Length 27" Width 9/16" (1/2")

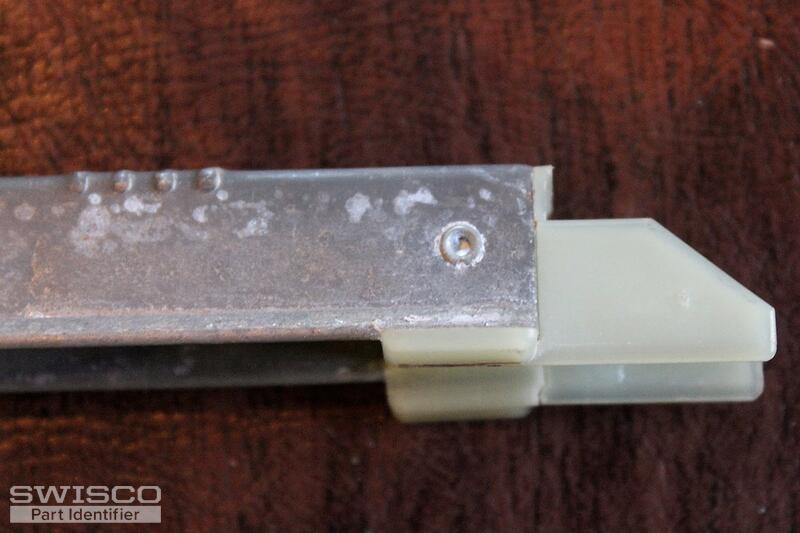

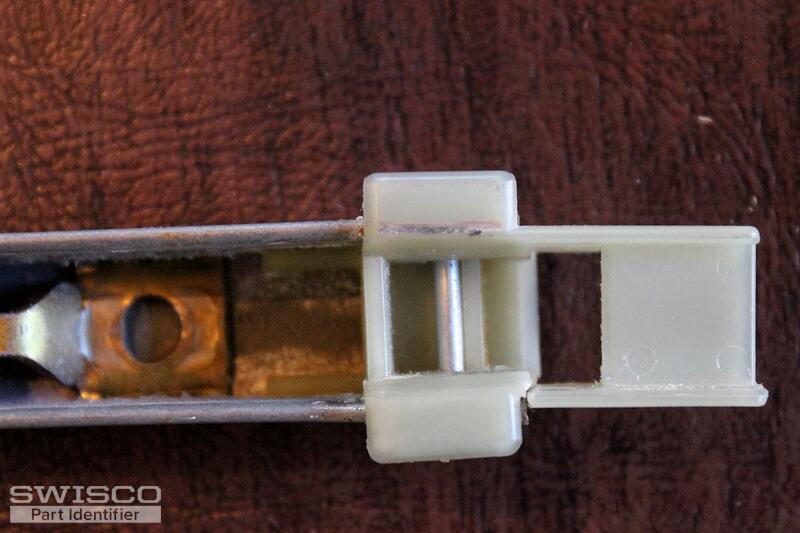

Channel Balance Shoe 1 3/32" x 15/16" wings width x 1/2"
Channel Balance Top 15/15" wings width x 11/16"
I can barely read what I think is "64 LO CALDWELL"
Help to identify channel balance
Handy Person from DuPont, WA
Jul 27, 2018 4:14 pm
5 user uploaded images
2 Replies
Casey from SWISCO
Jul 31, 2018 1:51 pm
Hi there- thanks for posting!
I agree, it looks like you have our S385-27. The measurements match up perfectly!
As far as the stamp "option" that you will select at checkout, that should be printed on your balance, but if it is not, then you will need to weigh your sash to find the exact measurement and match that weight to what we have on the sash weight range chart.
If you have any more questions, please don't hesitate to reach back out to us.
