Help to identify window counter wt spring

A quick learner from 17022 says:
December 24, 2018

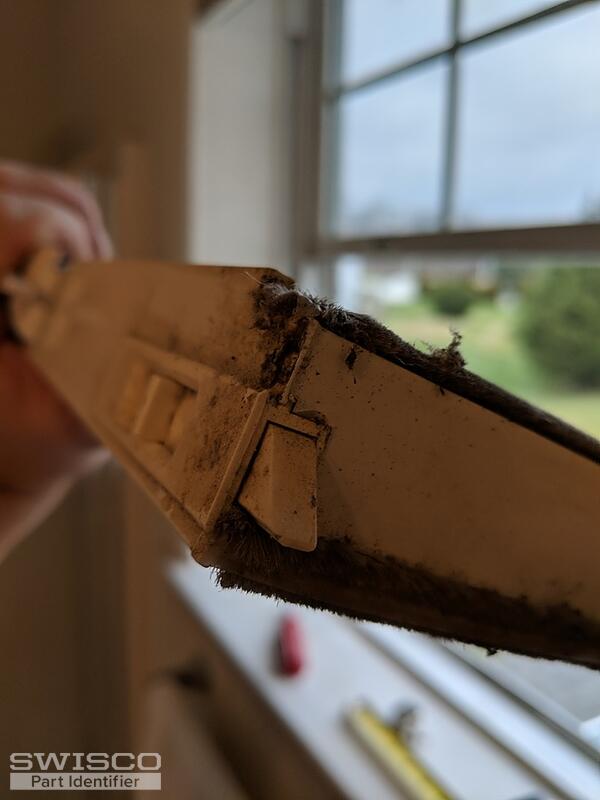

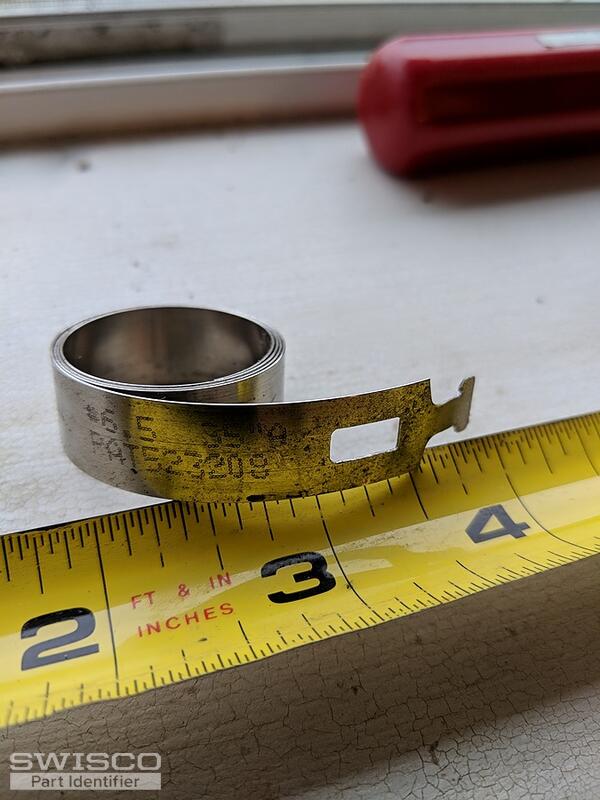

Hi, vinyl window snapped constant counter spring, looks like 6-1/2 lbs. Please help identify spring, slide block and support base for my window. Do you folks also carry the side locking latches if based upon a photo to be replaceable? From other posts, I read your team is awesome to offer this support.

Thanks

Ray

Profile picture of Casey
Casey from SWISCO responded:
December 26, 2018

Hi Ray, thanks for reaching out to us! I believe you're looking for our S160-6 coil balance, 15-111 pivot shoe, and 15-150S support system. I would give everything a glance to be sure you agree. Happy repairing!
6.5 lbs Series 160 Coil Balance
6.5 lbs Series 160 Coil Balance
S160-06
$4.85
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-111
$2.44
1/2" Coil Single Support
1/2" Coil Single Support
15-150S
$1.10
