Help with Crank Order

Question

Hello —

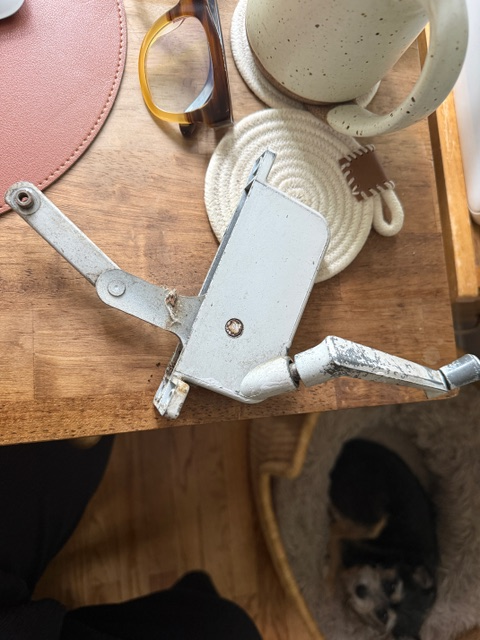

I bought these window cranks to replace the old, mostly broken ones in my sunroom.
They are a perfect fit with a few small differences that are impeding installation:

NEED:
A new crank with a threaded insert, where it hooks to the jalousie.

DIFFERENCES:

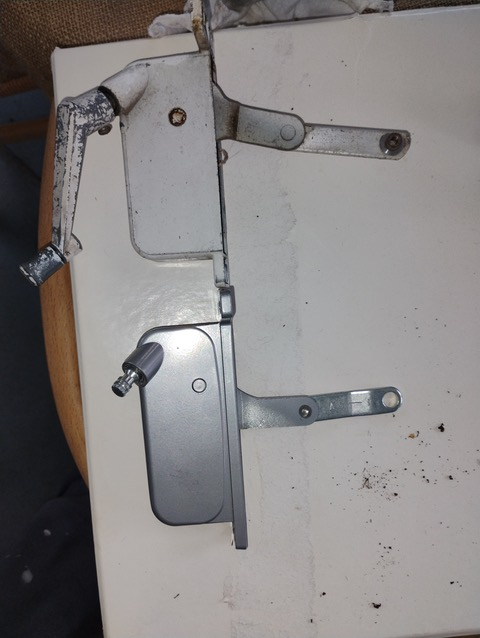

New Crank: 2 holes on top ORIGINAL: one hole on top
New Crank: bended bar ORIGINAL: straight bar

Can you help?

Casey · Accepted Answer

Hello,

The 39-025 appears to be a closer match to the box operator shown in your photos. The determining factor would be the hole spacing and whether the 10-24 thread bushing used at the end of the link arm would fit your window's internal linkage. We also offer the 33-206 washer to install the link arm. Review the specifications below and see what you think. Thanks for posting!

Dimensions for 39-025

View of the offset of 39-025
