My home was built in 1991 and I want to replace the channel balances for non-tilt windows 1/2" wide balances total of 14 windows - 2 balances for each side so a total of 28 balances.
I don't understand how to translate your product number with my channel balance numbers that I located at the bottom of the channel balance. I need:
They are all at various stages of broken and are extremely difficult to access.

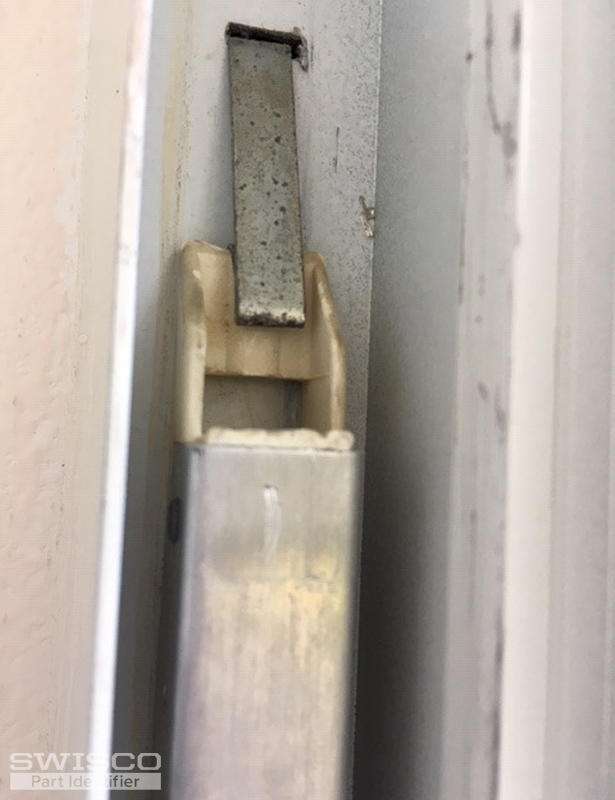

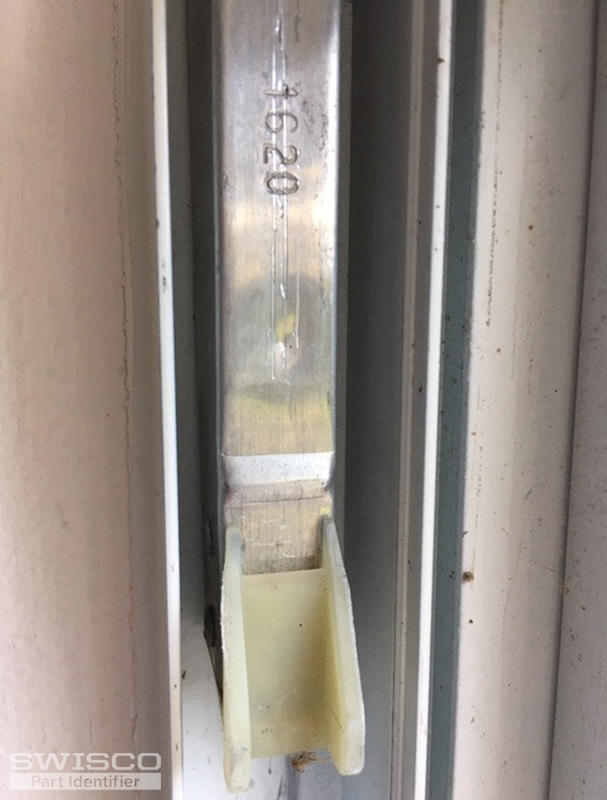

I have attached a picture of only one window balance for #1620
Thank you for your help!
Lisa
Tom from SWISCO responded:
March 17, 2020
Hi there, Lisa! Looking at your photos, I believe your balance to be a match for our Series 390 channel balance. This has a 19-002 top and 15-001 bottom, so as long as those match then I think you'll be good to go. Each size you have listed is a standard part and can be purchased directly from our site at your convenience. Thanks for considering us and please let me know if you had any questions, or if you'd like me to clarify on my recommendation. |
Tom from SWISCO responded:
March 18, 2020
Sort of. The logic is a little silly, but I'll do my best to explain. Most channel balance stamps are made up of four digits, like yours. The second two digits are sequential (10, 20, 30, 40, etc.) and we use them to determine the calibration of the spring. 1620 in your case is the second strength grade for your size and indicates that two balances can carry a sash weighing 8 through 20 pounds. The first grade is 10, which indicates 5 through 8 pounds, and the third grade is 30, which indicates 12 through 14 pounds. This exact weight range isn't something you can determine just by looking at the stamp, so don't worry. That's information that our company has access to, and we do provide it on our site for each balance size. But what does the "16" mean? That indicates the height of the visible glass. This is a little frustrating to me since many customers (rightly) assume that it indicates the actual length of the balance. Instead, it's always 1" less than the actual length of the balance. In other words, we can look at your stamp and know that it's 17" long since the stamp starts with "16." I know it's confusing, but that's just how they do it. Hopefully my explanation makes sense! |
