Help with Replacement Parts
Home Owner from Bradenton, FL
Aug 14, 2023 6:04 pm

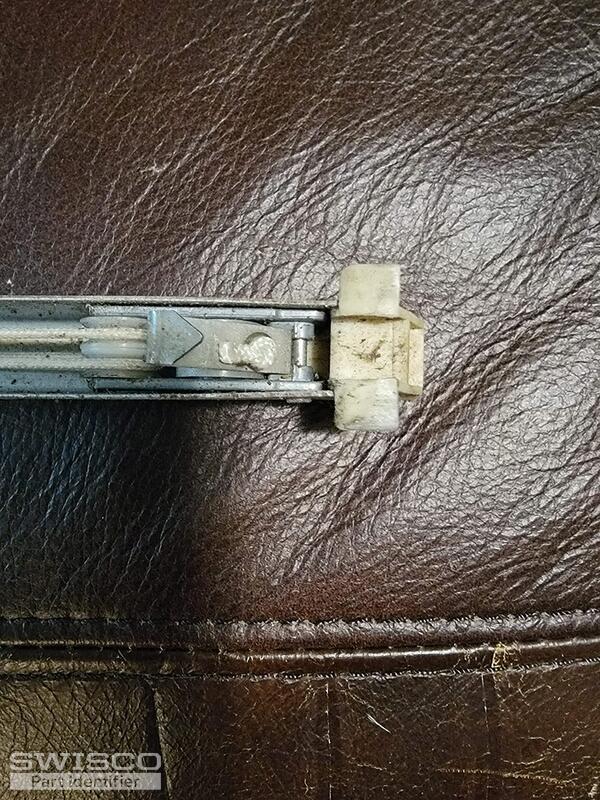

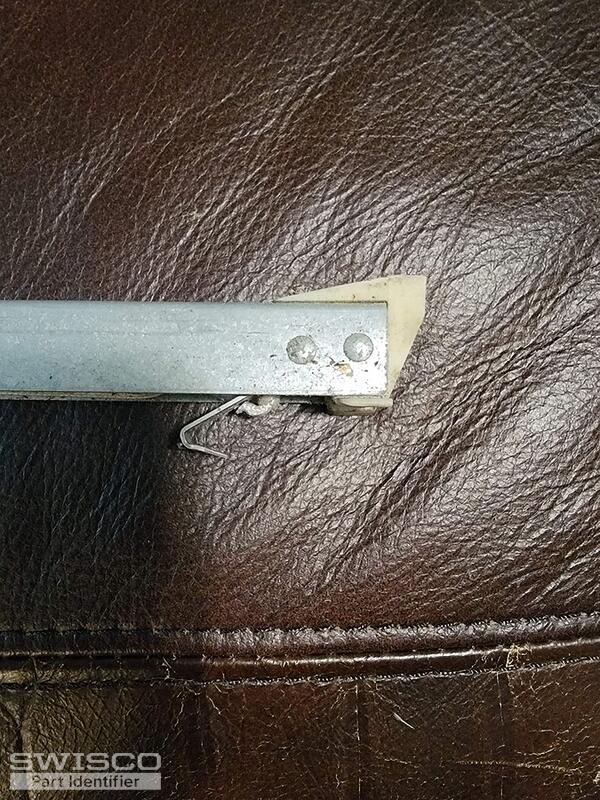

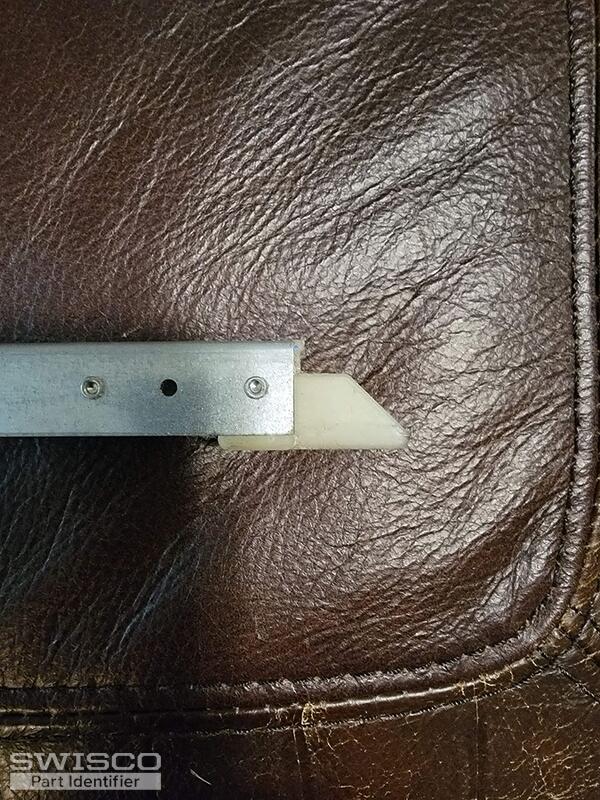

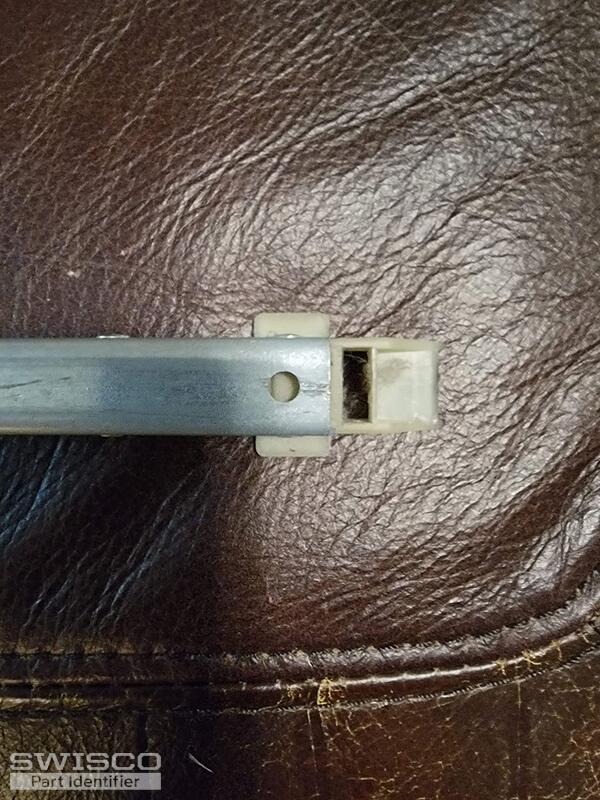

These are 30" long with stamps of 2930 (smaller window) and 2950 (larger window) - based on your site it looks like either S380 or S385 to me. Appreciate any suggestions to get the right ones ordered. Thanks!
5 user uploaded images
3 Replies
Home Owner from Bradenton, FL
Aug 14, 2023 7:40 pm

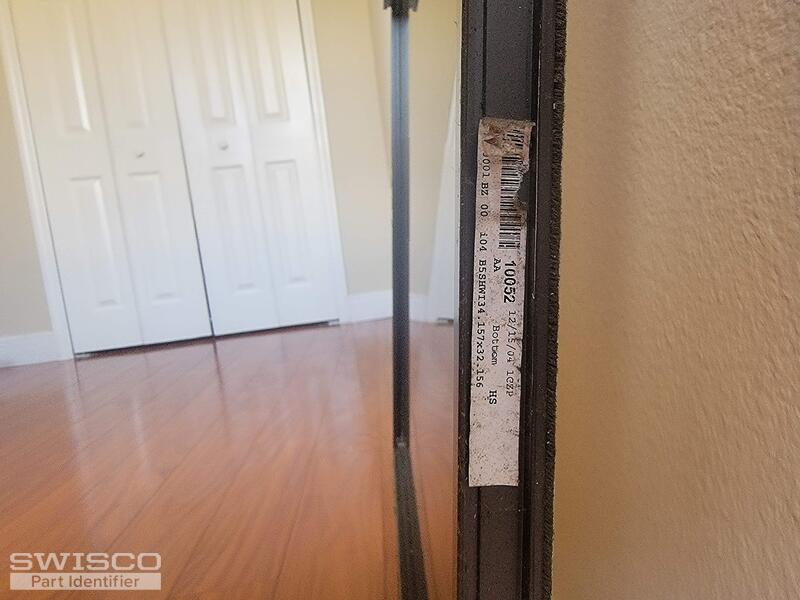

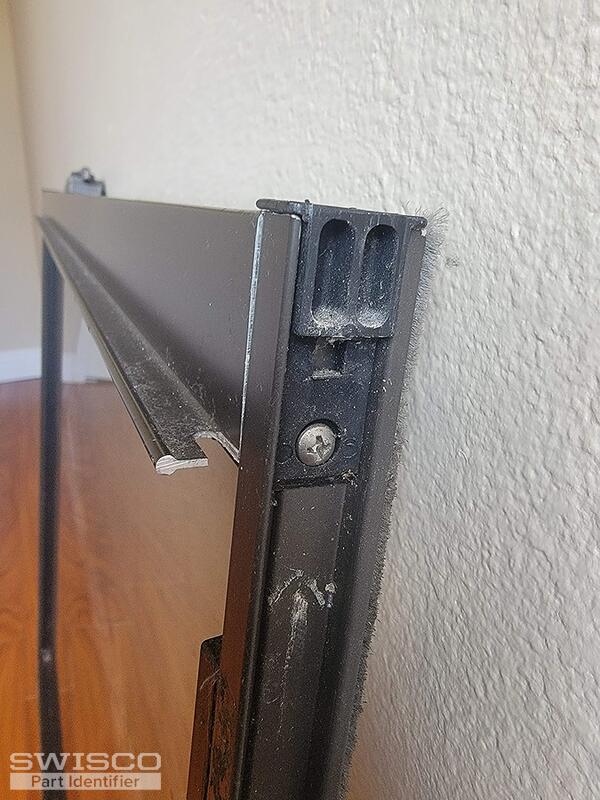

Here are a few more pictures of the channel balance, the sticker in the window, and a top sash guide. I need a replacement top sash guide and was wondering if the one shown in the picture is your product code 18-161 (Norandex Sash Guide) in black? Thanks!
4 user uploaded images
Casey from SWISCO
Aug 15, 2023 3:26 pm
Hello,
I agree that your combination of attachments indicates that you could have either the S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2630 spring strength options for your smaller window and 2950 for the larger window balances.
Comparison of the S378, S380 and S385 balance shoes.
As for your top sash guide, take a look at the 18-161 shown below. Thank you and let us know if you have any other questions or concerns.
Detail of 18-161
Profile view of 18-161
