Help with hardware

Question

I need to get the correct bottom track. I was looking at your low profile track to place directly on new tile that we installed and want to find the correct one to work with these doors.

I also might need to hardware for the doors themselves.

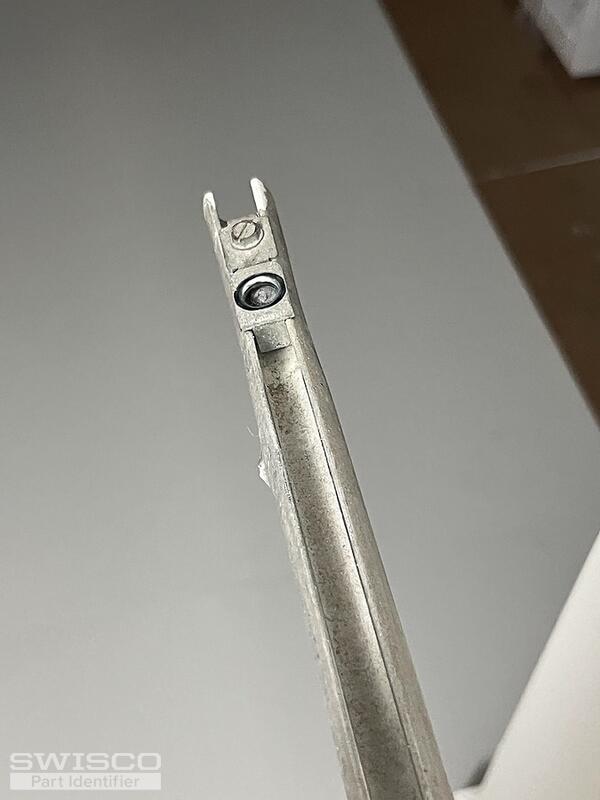

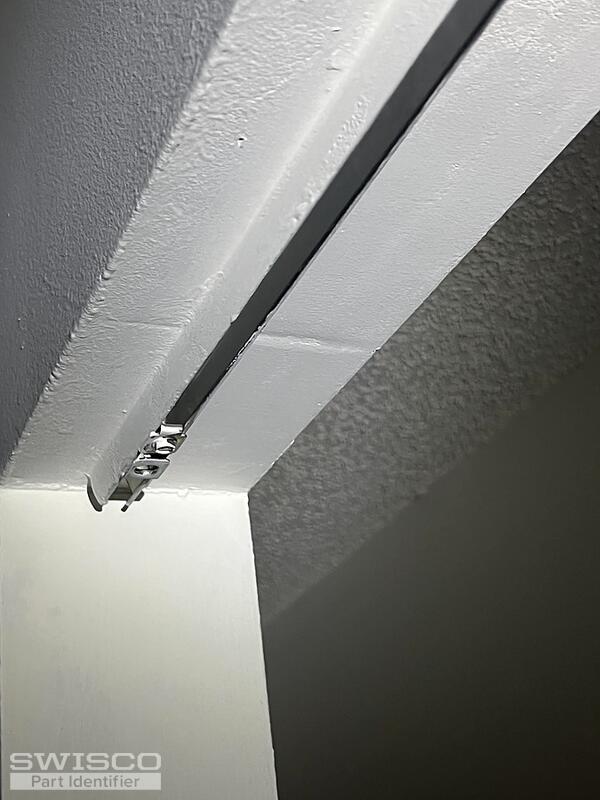

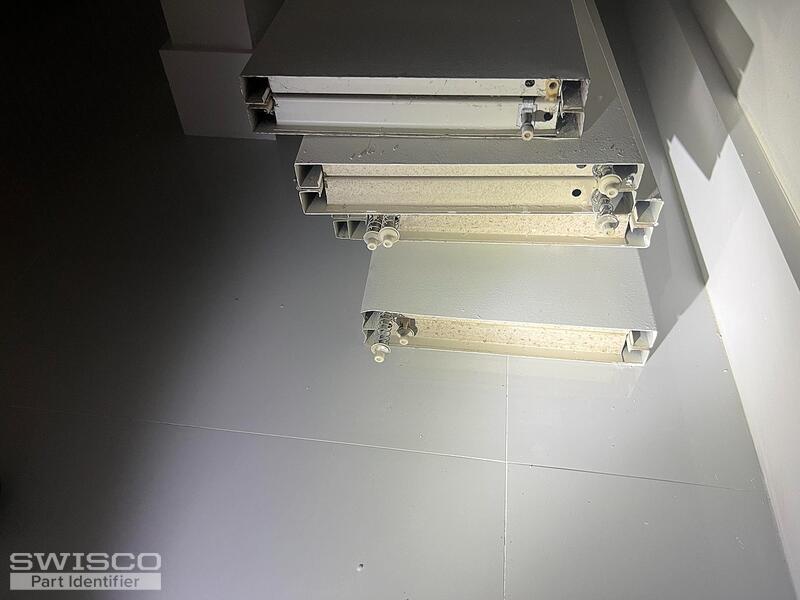

I am attaching photos of the doors, the current track on top and the old track that was there when we had carpet.

Please advise the items I will need for the door, the correct bottom track, and anything else you would recommend.

Paul · Accepted Answer

Hello,

It looks like you have Slimfold bi-fold doors. See the 21-401 track and additional length options related on this page. The height of these tracks is 5/8" compared to the 1/2" low profile. Unforutnately, the Slimfold pins won't fit the low-profile tracks you were considering. Most of your pins in the door look fine, but we've related the parts that go with the Slimfold doors on this page as well in case any of those parts are needed for your repair. Take a look and thanks for posting.

Dimensions of the bifold track.
