Help with sizing.

Home Owner from Oregon

Mar 31, 2024 1:13 pm

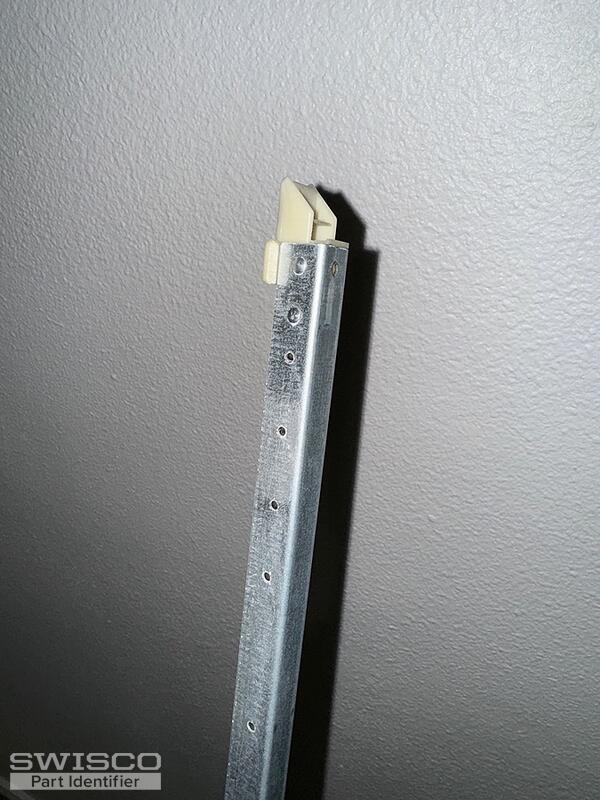

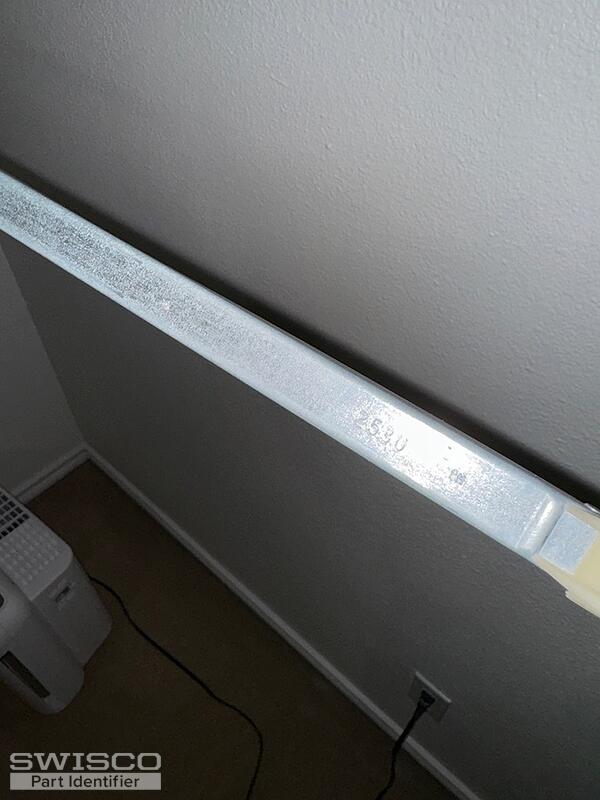

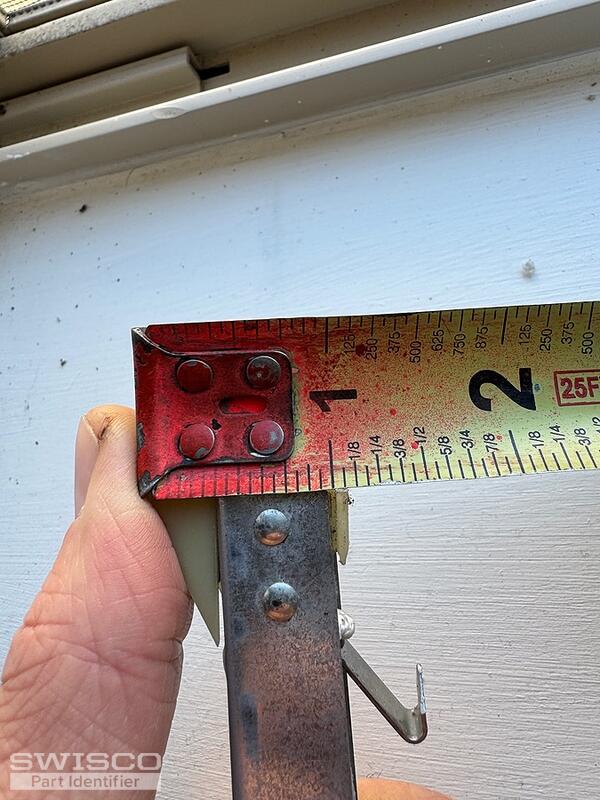

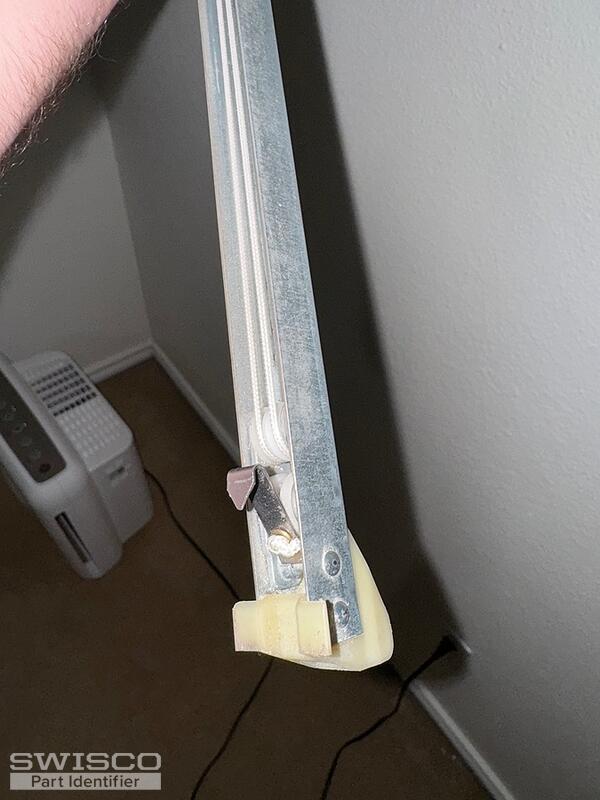

I need to replace a 1/2" wide by 26" long channel balance. Stamp on the metal is 2530. The issue for me is the current shoe is 1 1/16". Should I size up to 1 3/32" or go light with the 1" shoe. Thanks in advance.

4 user uploaded images

4 Replies

Bob from SWISCO

Mar 31, 2024 1:44 pm

Thanks for posting. Sometimes these nylon shoes wear down from age. If the current depth is still greater than 1", then it was probably originally 1-3/32". Therefore, the S385-26, stamped 2530, would be the best choice. Let me know if you have any other questions.

Home Owner from Oregon

Mar 31, 2024 2:36 pm

Thank you for the quick and concise answer Bob.

Bob from SWISCO

Mar 31, 2024 3:18 pm

My pleasure. Let us know if you need anything else!
