Help with what channel balance I have

Hello there!

Thanks for reaching out to us. This balance reminds me of the S751-28. However, your bottom shoe is different from the default one that comes with it. Yours has a style closer to the 15-233 which means this would have to be a custom order.

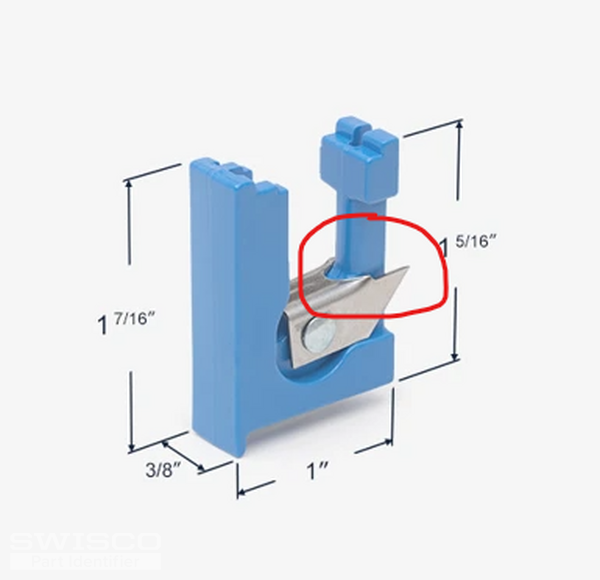

• Can you confirm that the metal tab portion looks the same as shown below?
• Can you also confirm the width of the metal channel? Ours will measure 9/16" wide.
• How does the balance install at the top of the window?
• Can you weight the window sash on a scale and tell us the precise weight?

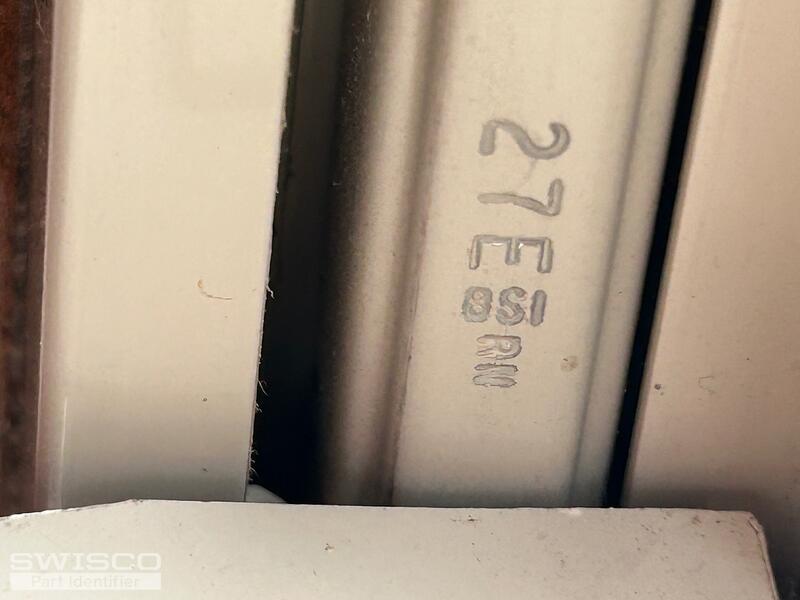

Thank you for confirming that information for us. To outline this for you, we'll use the S751-28 with the 27TG stamp and 15-233 shoe attached. A pair of balances with this stamp will support a sash weighing 24 to 31 pounds. We don't sell a shoe with your specifications but the 15-233 should still work. Please note that the Series 751 doesn't use a screw for installation. Since your old balance does, you would have to drill holes at the top of the metal channels to match your old balance.

With that said, I'm going to email you a purchase link for (2) of these balances that you can use to place an order on our website. Please let us know if you have any questions!

If you can let us know the measurements of your old shoe, we can work from there whenever you can get that for us.

You're very welcome! I'm glad we could be of help. We'll be here if you need anything else!
