Help with window balance replacement : SWISCO.com

Quick Learner from Arcata, CA

Jun 8, 2024 7:51 pm

Hello,

I have a Mercer window and need to replace the broken window balance. Can you please help me identify the correct part number? Thank you.

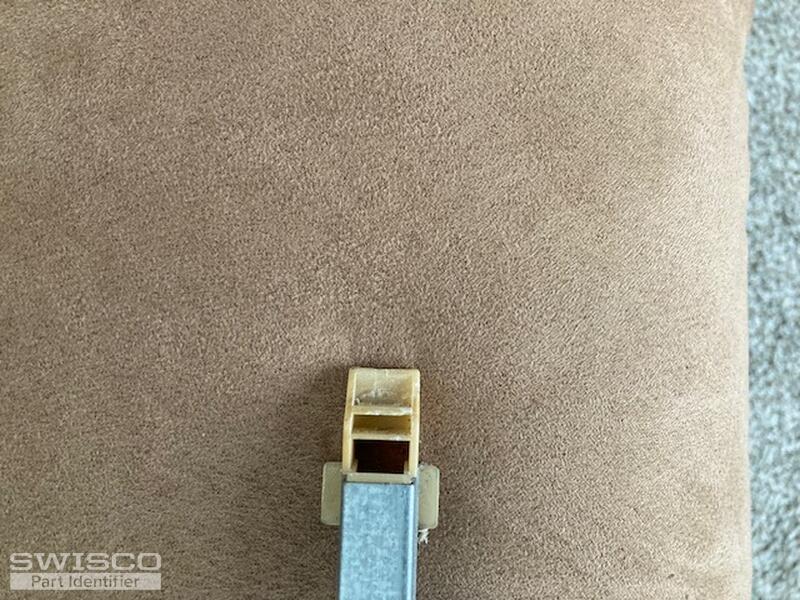

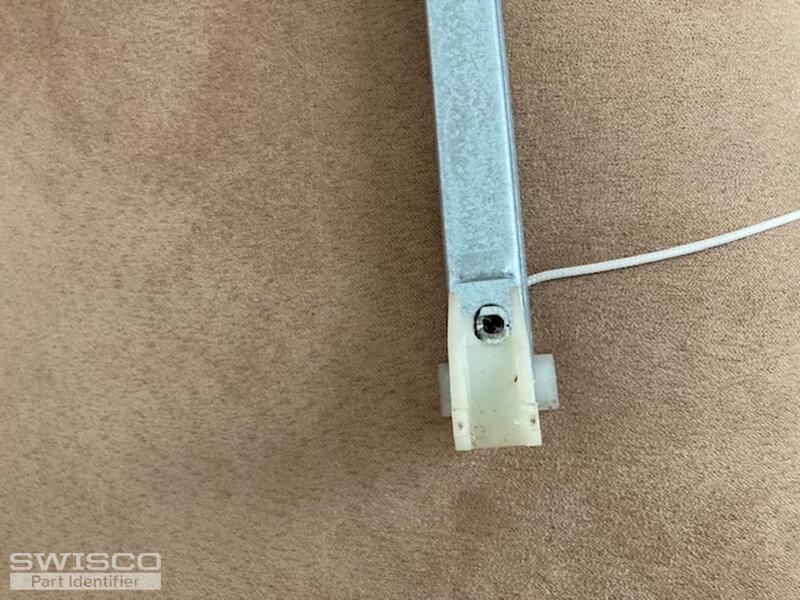

5 user uploaded images

4 Replies

Emily from SWISCO

Jun 11, 2024 10:21 am

Hi there!

I believe we can help with this. Can you show us a photo of the inside of the metal channel where the innerspring connects to the pulley mechanism? That would be located in the middle of the channel.

Quick Learner from Arcata, CA

Jun 11, 2024 11:46 am

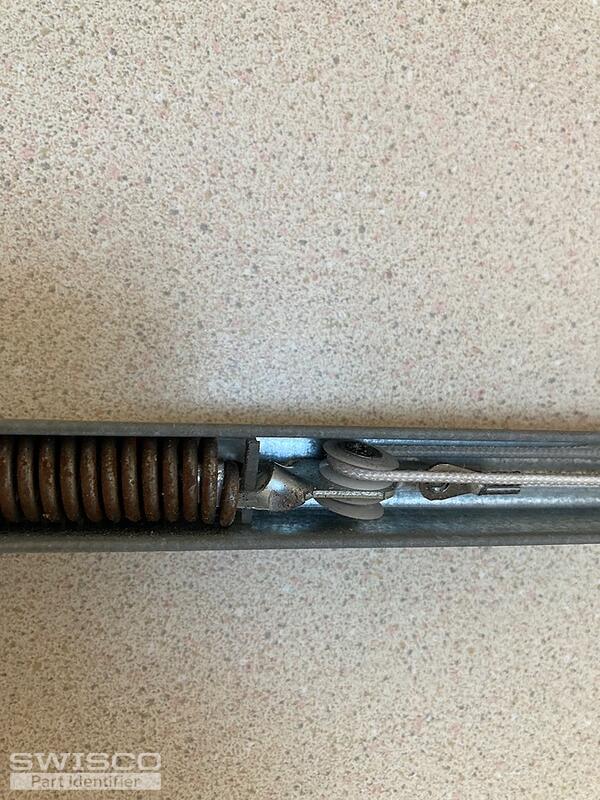

Thank you! I hope the attached photo shows the correct spot.

1 user uploaded image

Emily from SWISCO

Jun 11, 2024 3:45 pm

Perfect! Thank you kindly for getting back to me. I recommend our S380-27 or S385-27 based on the photos you've uploaded. The best match will ultimately come down to the depth of the bottom shoe as shown below. You will also want to select the 2640 stamp option.

Let me know if you have any questions!

Comparison of the S378, S380 and S385 balance shoes.
