Hinge

Question

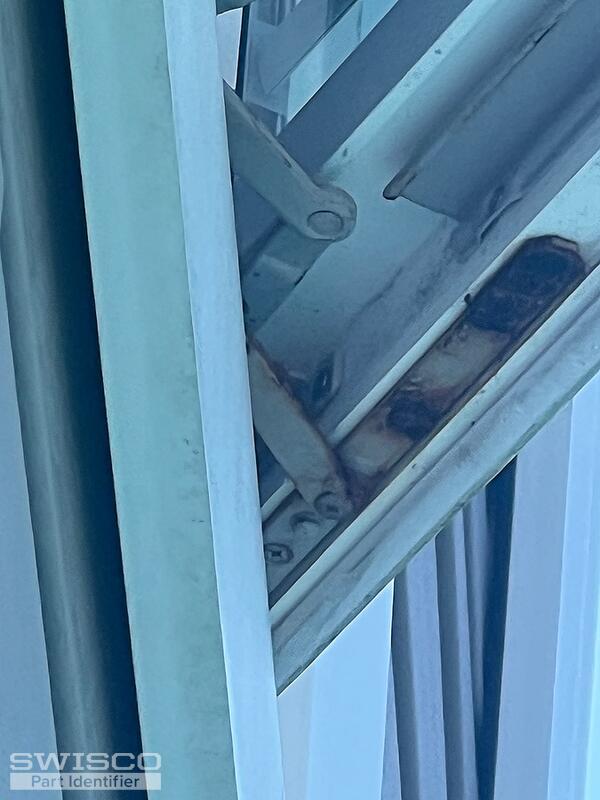

It is the rusted bracket that is attached to the bottom of the window and the plastic slider part on the window sill.
The track on the sill is about 10" long. The track on the window is about 8" long.
Also it is on a left hand window.

Jasmine · Accepted Answer

Thanks for writing in! Your casement window hinge can likely be replaced with our 36-048 2-Bar Hinge Set. Carefully look over the dimensions below and compare them to confirm that this is the best replacement for your repairs.

These hinges can be used to replace both the top and bottom hinge for both left and right handed applications.

Detail of 36-048

These hinges can be used to replace both the top and bottom hinge for both left and right handed applications.

Detail of 36-048
