Hinge for casement window

Start a new Discussion

Professional from Tulsa Oklahoma

Nov 20, 2020 10:43 am

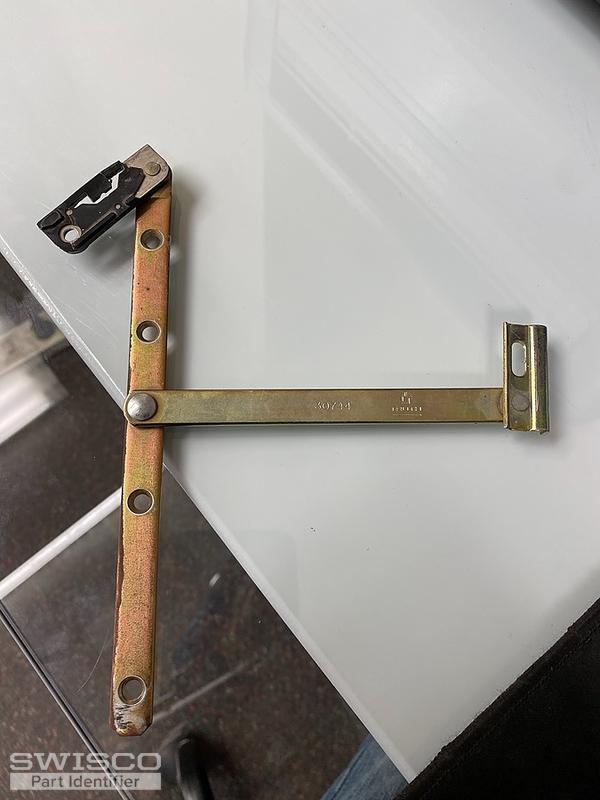

This part came off of a right hinged casement window. My customer & I do not know the manufacture of the windows.

4 user uploaded images

4 Replies

Bob from SWISCO

Nov 24, 2020 9:53 am

Take a look at our 36-048. Look over the dimensions and let me know what you think.

Professional from Tulsa Oklahoma

Dec 2, 2020 4:07 pm

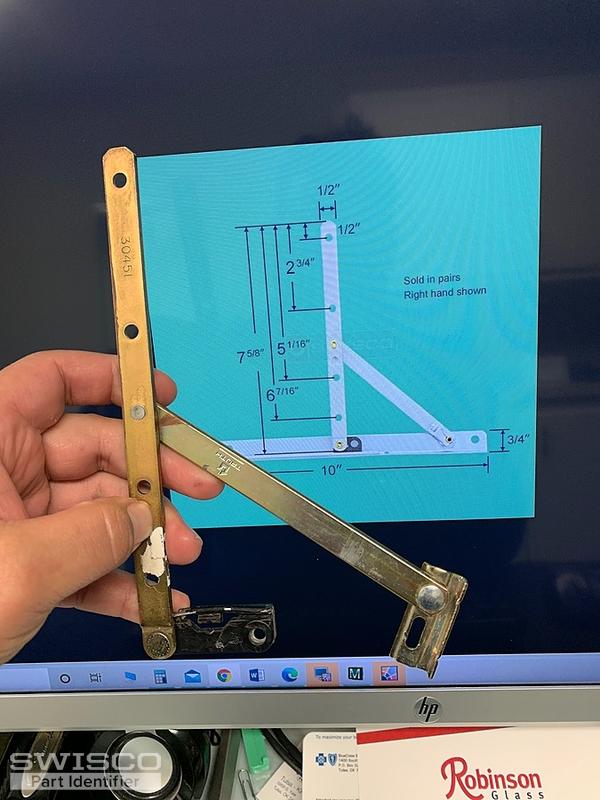

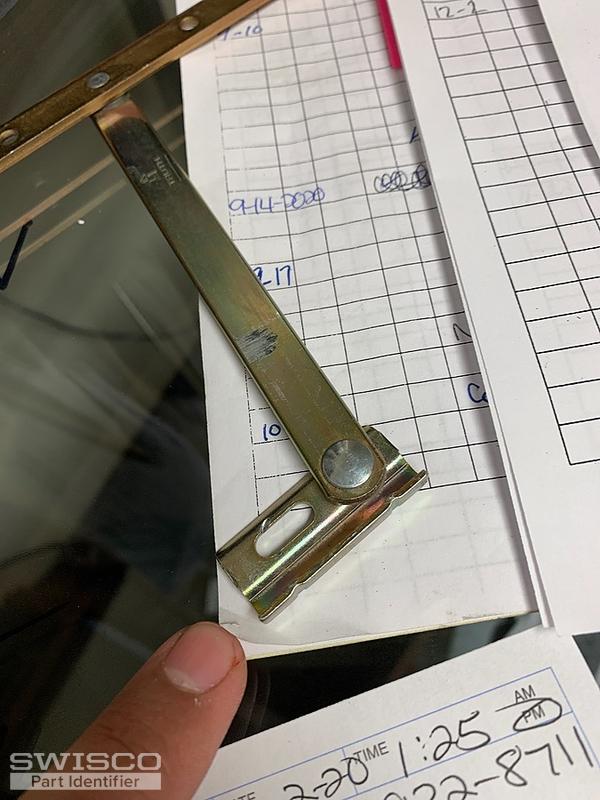

Unfortunately right arm attachment doesn't match the part. See picture of me pointing to it. However all the sizes given In The diagram are exactly the same. Let me know if you have any ideas. Thank you.

2 user uploaded images

Bob from SWISCO

Dec 3, 2020 3:20 pm

I believe you'd still be okay, so long as you replace both sashes in the window at the same time. Watch the video below for more details.
