Hinge set for Marvin Window

Handy Person from mn
Good Afternoon,
I am in the process of fixing a window that was blown off its hinges for a customer. The window is a Marvin and is about 3'x5'. I am looking for the hinges and track because the operator looks to be in good repair. I am attaching some photos. Can you help me find the correct parts for the situation? I am erring on the side of replacing those because the window was dangling off the upper track during a storm. I would get better pics, but I can not remove the window until I have the parts to put it back in place due to the nature of the damage, size of the window and its location. Thanks so much.

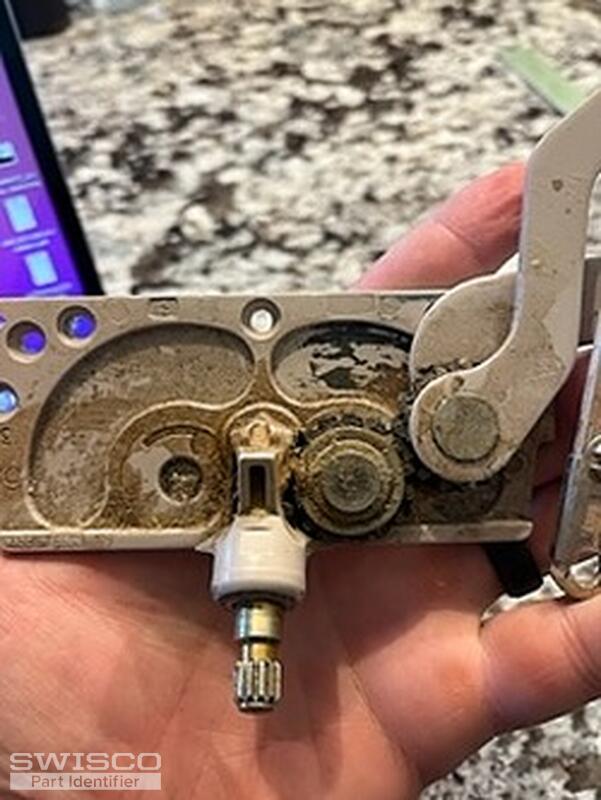

The operator is a Truth Entry Guard with an 9" arm.
4 user uploaded images
3 Replies
Handy Person from mn
Also, this is the left window (looking out from the inside. The mechanical pictures installed are from the working window on the right.
Thank you!
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

The hinge assembly shown in your photo resembles the 36-048

As for the operator, take a look and compare the specifications of the 39-031 and 39-032 EntryGard operators to the ones you're replacing, paying close attention to the length of the shorter link arm. If the window you're repairing has the opposite-handed version of the operator in your photos, see the 39-031. Thanks for posting!

Dimensions for 39-032
Dimensions for 39-032
