Hinges

Quick Learner from Landrum

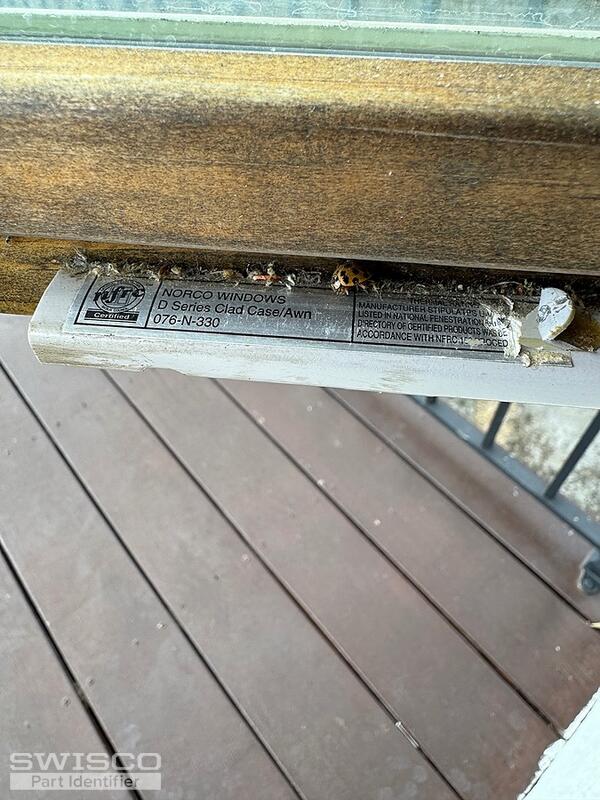

I need to find the upper and lower hinge assembly
5 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hello,

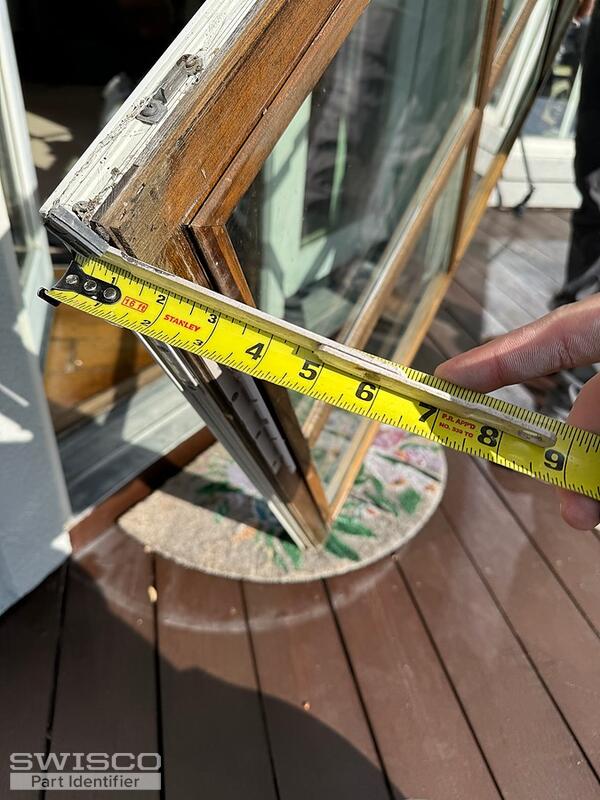

Your window hinges can likely be replaced with the 36-048 2-Bar Hinge Set but you'll need to be sure to compare the dimensions to confirm these are the right fit. The most important dimension being the length of the track that installs to the window sill.

These can be used to replace the top and left bottom hinges for both left and right handed applications.

Keep in mind, you may need to drill new installation holes if the existing hole spacing isn't a match. We do have to advise using caution if it is necessary to drill; there is a risk of drilling into the glass.

Detail of 36-048
Detail of 36-048
