Home Depot DH Window 34 x 58 Circa Fall 1997

Handy Person from Gunnison, CO

Jul 29, 2022 12:02 am

HI! I'm so glad you are there! I'm trying to fix a double hung track that measures 28" long with a 12" spring end to end (w/hook). I purchased the window at Home Depot in the fall of 1997.

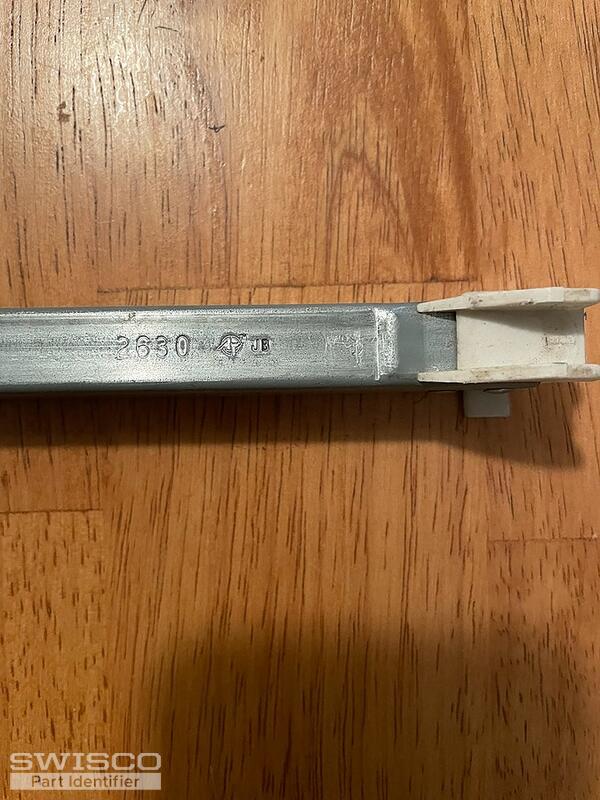

There is a marking on the track itself "2630"

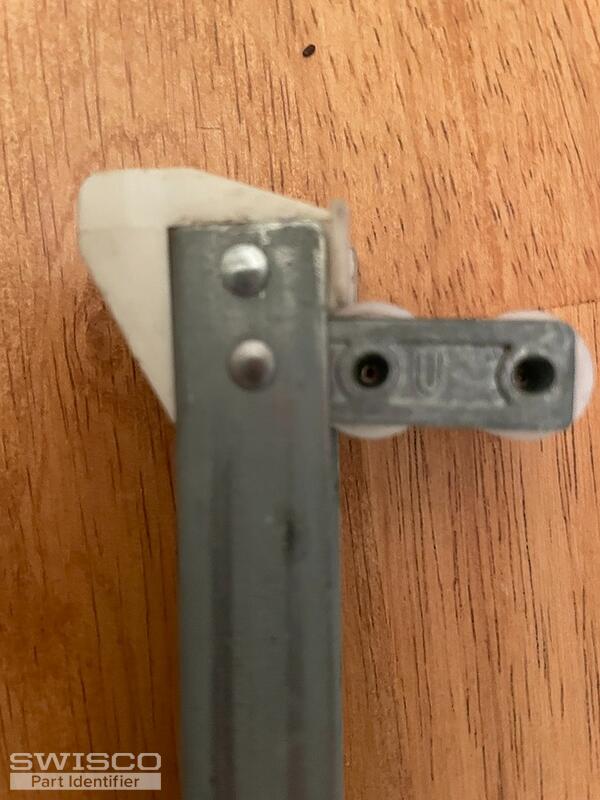

There is a marking on the metal piece that encases the double pulley "U"
The plastic parts or the spring itself do not have markings.

If you guys figure this out, you are geniuses!

5 user uploaded images

6 Replies

Emily from SWISCO

Aug 2, 2022 2:46 pm

Hi there!

We're glad you found us! I recommend our S380-27 or S385-27 channel balance, depending on your bottom shoe depth. The Series 380 has a 1" deep shoe and the Series 385 has a 1-3/32" deep shoe. Measure as shown in the image below to determine the best match. You will also need the 2630 strength option.

Let me know if you have any questions!

Comparison of the S378, S380 and S385 balance shoes.

Handy Person from Gunnison, CO

Aug 8, 2022 12:13 am

Wow you really are a genius! Thank you so much. It looks like my shoe depth is 1 and 3/32, so I am hoping to order Part S385. Do they come in pairs, or do I need to order two? Also, do you have a link to a youtube video for this? Perhaps you already sent it...

Is it possible for us to chat by phone? If so, please call me so that I can place the order.

Again, wow I'm super impressed and thank you so much!

Kim

Emily from SWISCO

Aug 8, 2022 8:39 am

I'm afraid our balances aren't sold in pairs so you would need to adjust the needed quantity. And yes! We indeed have a video that will walk you through the replacement process. I'll post that down below.

Unfortunately, our department can't talk on the phone. I can only respond right here on this page, I hope that's okay! However, all orders can be placed directly on our website whenever you'd like.

Thank you for the kind words, Kim! We really appreciate them. Please let me know if I can be of further help!

Handy Person from Gunnison, CO

Aug 10, 2022 5:52 pm

Thanks so much EMILY!

I got them installed and the window works like a breeze :)

SO GRATEFUL!

Kim

Emily from SWISCO

Aug 11, 2022 7:51 am

That's awesome to hear, Kim! I'm so glad I could be of help. If you have any future repairs, you know where to find us!
