A quick learner from USA says:

June 1, 2020

I am trying to fix my non tilt windows. Can you please help me identify the parts needed and if it should be a fairly easy or difficult fix? I have attached the photos below.

- The window balancer is 27" long and I think it's 9/16
- I couldn't figure out what shoe is needed that would go under the window to hold the balancer

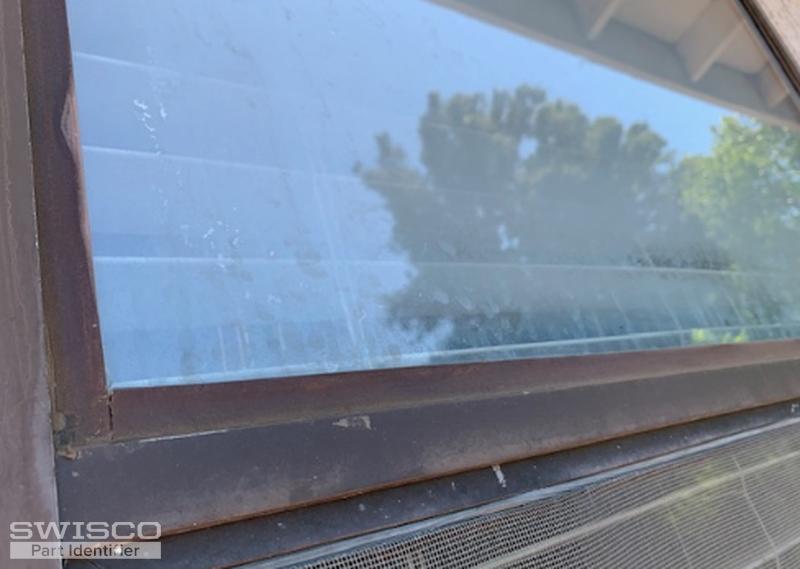

- The seal strips around the outside of the windows are coming off and I don't know how to repair it
- One of the pictures is of the sliding patio door where the furry strip is coming off

Thumbnail of the uploaded file named 06.PNG

Thumbnail of the uploaded file named 062.PNG

Thumbnail of the uploaded file named 069.PNG

Thumbnail of the uploaded file named 064.PNG

Thumbnail of the uploaded file named 0701.PNG

Tom from SWISCO responded:

June 4, 2020

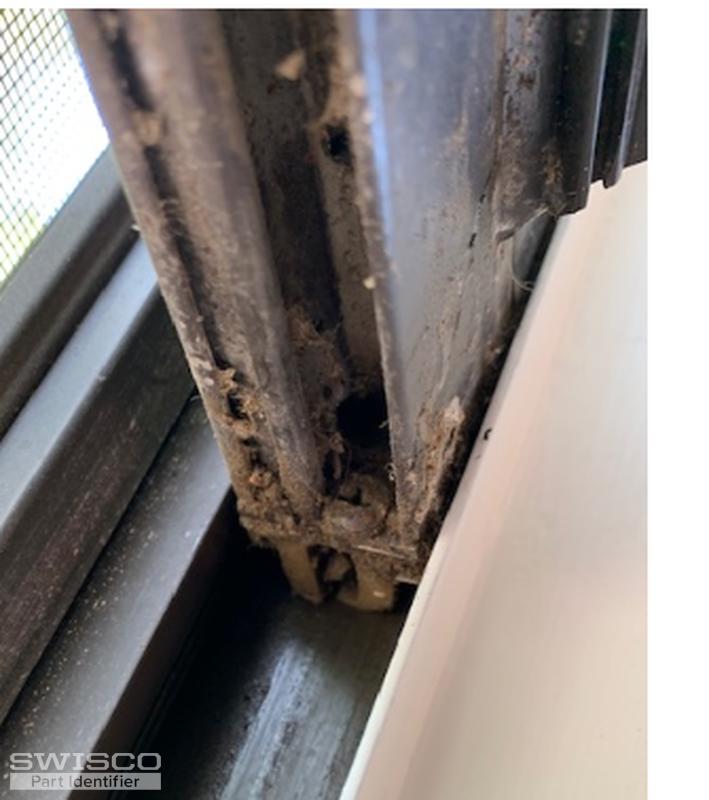

Thanks for posting! If your balance tube is 9/16" in diameter, then you would want our S500-27 spiral balance. I'm not sure what shoe it attaches to, but it looks like whatever it is is nestled in the bottom corner of the sash. There is a good chance that it can't be removed or replaced. Many windows like this are designed that way.

I'm not sure about your weatherstripping for either the window or door. We will require more detailed information to identify a match. I recommend watching the video below, this should cover everything we need to get started.

27" Series 500 Spiral Balance

S500-27

$9.42

Identifying Replacement Weatherstripping

VIDEO

WATCH >

How to Identify a Replacement Spiral Balance

VIDEO

WATCH >

How to choose the proper spiral balance tip color

GUIDE

READ >

How to adjust a spiral balance on a non-tilt window

GUIDE

READ >
