Honeyfield Casement Windows -

A handy person from Eagle Colorado says:
I am looking to replace some worn hardware, install a folding bronze handle and cover with matching locks. Ideally it would come with the operator. I am also going to reverse the swing on several of the casement windows so I need to know what is a right and what is a left part number.
Lock and Keeper - Truth - 30838B, 4 screws
Window Operator - Truth 30905
Hinges - 6293 AMS
Track - 10"
Bracket - as pictured
Thumbnail of the uploaded file named 20210712_121823.jpg
Thumbnail of the uploaded file named 20210712_121851.jpg
Thumbnail of the uploaded file named 20210712_121900.jpg

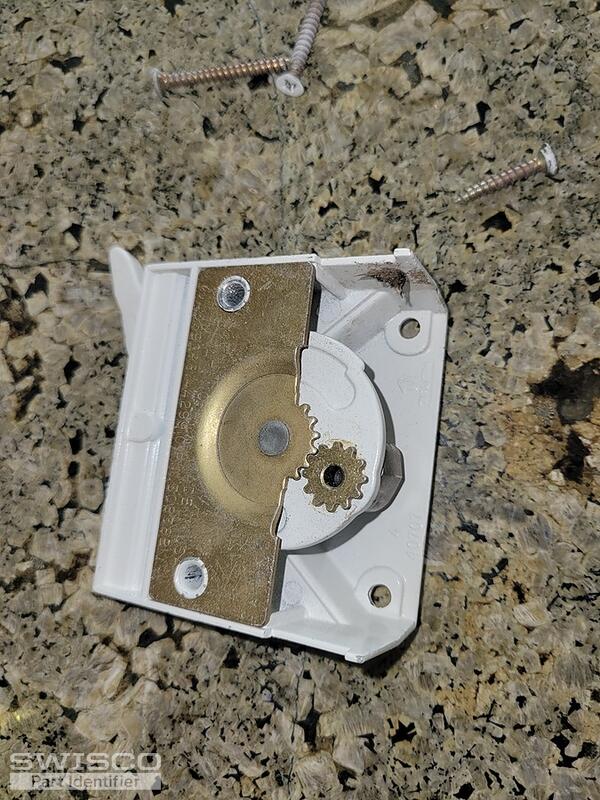

Thumbnail of the uploaded file named 20210712_122221.jpg

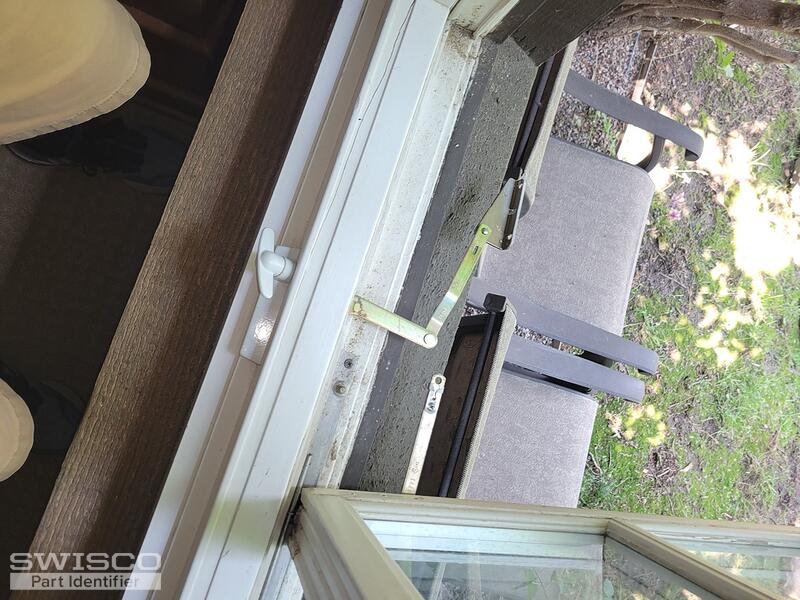

Thumbnail of the uploaded file named 20210712_121925.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

Take a look at our 39-171 and 39-172 operators, along with our 36-048 hinge set. For your locks, please see our 38-097 & 38-098 and 38-079 keeper. As for your brackets, start by taking a look at our 39-545 and 39-546. Look over the dimensions for these items and compare them to your original hardware to see how everything matches up.

I'm not sure what you consider left or right, every customer and window manufacturer defines that differently. You just need to focus on what side the handle is on and use that as a reference for what side you need. I hope that helps.

38-079 : Casement Sash Lock Keeper
Casement Sash Lock Keeper
38-079
$2.10
VIEW >
39-171 : Truth Hardware Dyad Operator
Truth Hardware Dyad Operator
39-171
$25.72
VIEW >
39-172 : Truth Hardware Dyad Operator
Truth Hardware Dyad Operator
39-172
$25.72
VIEW >
38-097 : LH EntryGard Sash Lock
LH EntryGard Sash Lock
38-097
$11.59
VIEW >
38-098 : RH EntryGard Sash Lock
RH EntryGard Sash Lock
38-098
$11.59
VIEW >
39-545 : Truth Snap-Stud Bracket
Truth Snap-Stud Bracket
39-545
$2.60
VIEW >
39-546 : Truth Snap-Stud Bracket
Truth Snap-Stud Bracket
39-546
$2.60
VIEW >
36-048 : 2-Bar Hinge Set, 10
2-Bar Hinge Set, 10"
36-048
$17.46
VIEW >
Anatomy of a casement window
Anatomy of a casement window
VIDEO
WATCH >
Connecting a casement window operator to stud bracket
Connecting a casement window operator to stud bracket
VIDEO
WATCH >
How to Replace a 2-Bar Hinge Set on a Casement Window
How to Replace a 2-Bar Hinge Set on a Casement Window
VIDEO
WATCH >
