Hopper window operator.

A home owner from Sylva NC says:
Please confirm correct part number. This is from a 36In wide hopper window. Center crank, approx 10 in arms. Circa 1990 (Bronze).
Thumbnail of the uploaded file named 3F74C82D-5D89-4B37-9C71-7DDD8959ABD2.jpeg
Thumbnail of the uploaded file named 2341C5A8-5074-492B-A96B-30925C0F3644.jpeg
Thumbnail of the uploaded file named A704AB63-A9BA-4A2B-A991-3654C1A1CEAF.jpeg
Profile picture of Tom
Tom from SWISCO responded:

I'm afraid I don't recognize what you have from these images. Can you show me a picture of the base of the operator, as well? That's just as important as the arms. Thank you!

A home owner from Sylva NC says:
It looks like your product 39-083

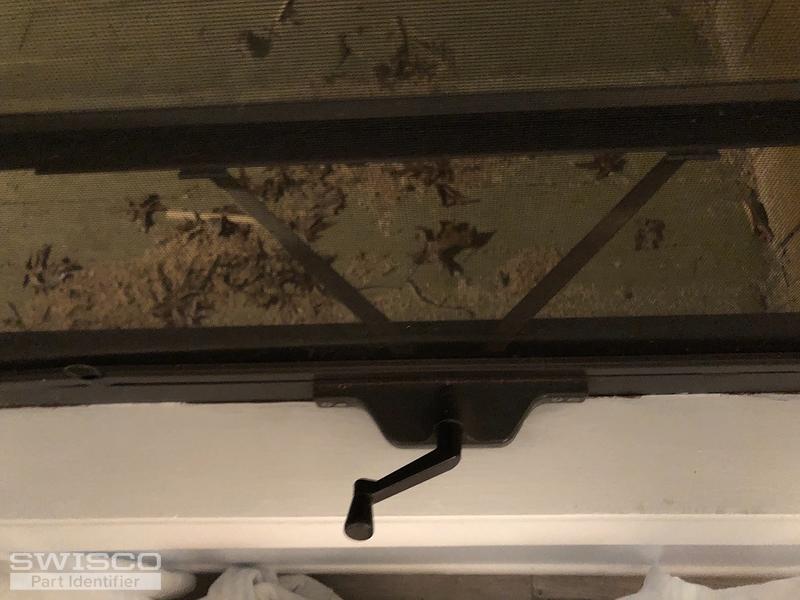

Thumbnail of the uploaded file named D6521AD1-132D-4427-900B-06263EA929CB.jpeg

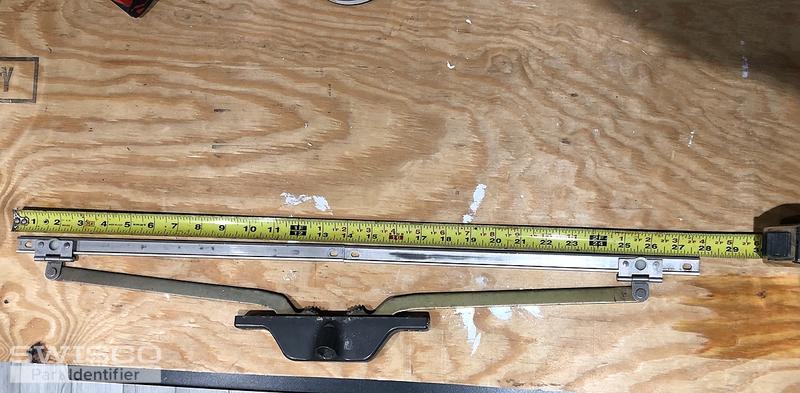

Thumbnail of the uploaded file named 002381C0-F862-4A51-876C-D0473F5D9B2A.jpeg
Thumbnail of the uploaded file named CC2471F7-A1EA-42B3-BE2A-B43EBADB2C64.jpeg
Profile picture of Tom
Tom from SWISCO responded:

The base and arm configuration for the 39-083 is too different. I don't think that will work. You may instead want to consider our 39-312. This has the same kind of base and the arms are similar, but the sliders at the end of each arm are slightly different than yours. For one thing, ours are plastic instead of metal. The overall shape is also slightly different, but it may be close enough. Look it over and let me know what you think.

A home owner from Sylva NC says:
Yes. After pulling the old unit and looking closer, I ordered 39-312, and also ordered new slides to be sure they were compatible. Fingers crossed!! Thank you.
A home owner from Sylva NC says:
Tom.
Just a note to say the 39-312 fit perfectly like a glove. You guys have an incredible website that saved the day. Thank you.
Jim.
Profile picture of Tom
Tom from SWISCO responded:

That's great to hear! Thank you so much for your kind words, they mean a lot to us. You know where to find us if you need anything else.
