How do I determine which corner key I need?
Quick Learner from Screens
Jun 6, 2011 11:32 am
I need replacement corner keys. The catalog lists the keys in terms of the frame size. How do I determine which frame size (dimension) I have? Thanks.
4 Replies
Tom from SWISCO
Jun 6, 2011 12:52 pm
Good Afternoon,
Do you have any of the original corner keys left? We may be able to figure out what you need from the old corner key. If you do, please submit a couple pictures of it and include some measurements.
What type of window is it? Do you know the brand name or model number?
Do you have any of the original corner keys left? We may be able to figure out what you need from the old corner key. If you do, please submit a couple pictures of it and include some measurements.
What type of window is it? Do you know the brand name or model number?
Quick Learner from How do I determine which corner key I need
Jun 6, 2011 1:46 pm
This is a Malta casement window that was installed around 1990 and the model number is 7AB.

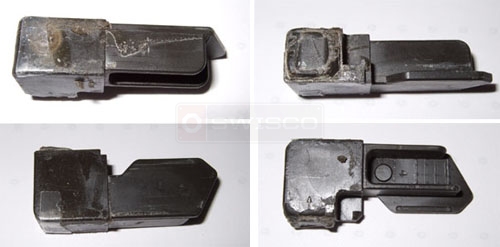

The part appears to be similar to but not quite the same as #95-053 (see attached photos). My measurements indicate that the raised corner square (Side 1) is 11/16" (as for # 95-053). The distance between the outside of the two rails in Side 2 is 3/8". The flat section in Side 1 to which the rails are attached (missing in #95053?) is 5/8".
I don't know how to determine which size frame I have but the smallest dimension is 7/16". Is this the way the frame size is dedtermined?
Does this help?
The part appears to be similar to but not quite the same as #95-053 (see attached photos). My measurements indicate that the raised corner square (Side 1) is 11/16" (as for # 95-053). The distance between the outside of the two rails in Side 2 is 3/8". The flat section in Side 1 to which the rails are attached (missing in #95053?) is 5/8".
I don't know how to determine which size frame I have but the smallest dimension is 7/16". Is this the way the frame size is dedtermined?
Does this help?
Paul from SWISCO
Jun 7, 2011 10:54 am
I believe the 95-053 should work for a Malta 7/16" bronze frame. Please let me know if you would like an additional view or a specific measurement of the 95-053 to help you make you decision.
