How do you replace this roller?

Handy Person from Las Vegas, Nevada

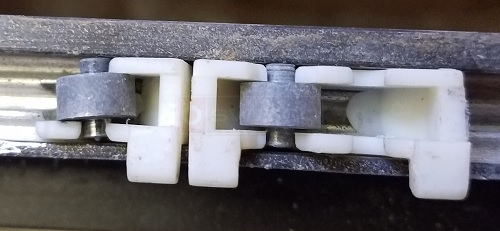

I've been searching all over for these rollers. I have one question and that is how do you replace them? They appear to slide into a channel in the window. I removed the screw in the channel but they are pinned in by 'bends' in the channel. How do I get them out and put the new ones in. I've attached a picture of the broken parts but you can see in the picture that they used a chisel or screwdriver to 'break' the channel and thus pin the rollers in a specific area of the window.
Roller
2 Replies
Paul
Paul from SWISCO
SWISCO
Expert
Yes, they pin the wheels in the channel to prevent the wheel assembly from sliding. We suggest getting a chisel or slot screw driver and tap it with a hammer open up one side of the channel to slide out the wheel assembly. After installing a new wheel, just re-pin the channel.
