How to measure rail length

Home Owner from South Carolina
May 29, 2023 10:53 am

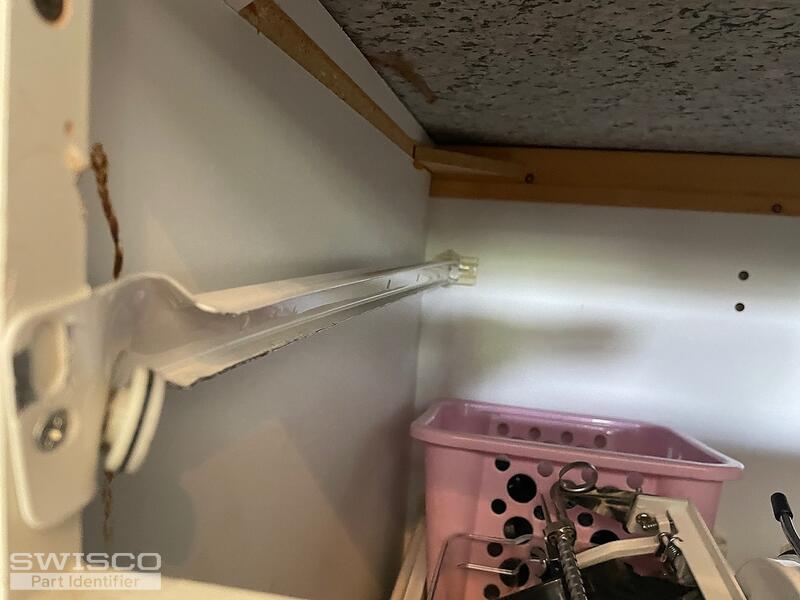

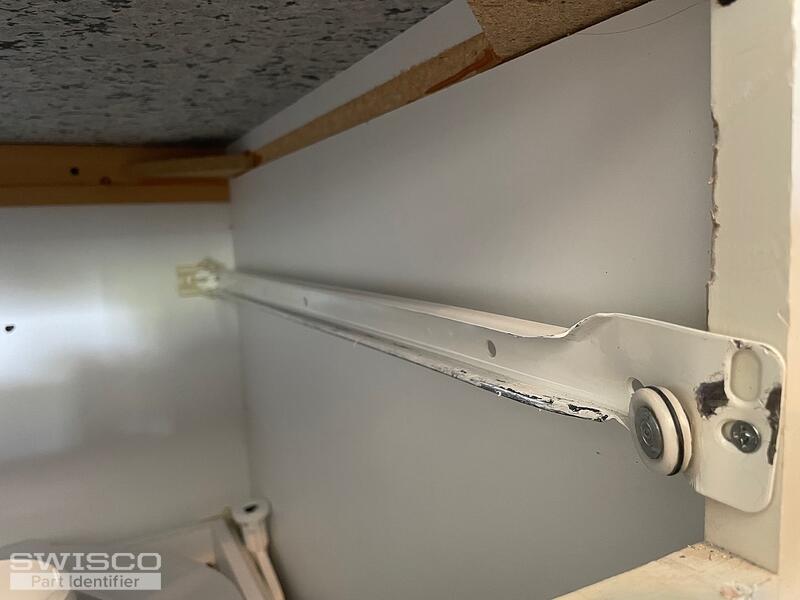

I have a 21.75" drawer with Unigrass 6600 slides and I need to replace the slides and the accompanying cabinet rails. The cabinet depth is 23.5". Please recommend what replacements I need. The existing cabinets have a plastic rear Mount extension bracket. You can see the rollers on the existing rails are bent/damaged.

Thanks!
IMG_0723 IMG_0722 IMG_0721
3 user uploaded images
1 Replies
Jasmine
Jasmine from SWISCO
Jun 1, 2023 1:57 pm
SWISCO
EXPERT

Thanks for posting! We do not carry any replacement drawer slides that would be compatible with the type of bracket you have pictured here. Your drawer slides connect to your bracket at what appears to be a 90 degree angle. So, to replace these, you may  need to make some modifications.

There is a chance that 32-060 could possible work as a replacement but I cannot make any guarantees. This drawer slide is 21-5/8" in length has a 3/4" extension. To make up for the slight difference in the length of the drawer slide you'll need to use the 32-119 grass adapter bracket.

Detail of 32-119
Detail of 32-119

Side view of 32-119
Side view of 32-119

There is also the 32-059 drawer slides along with the 32-089 drawer slide sockets.

Detail of 32-089
Detail of 32-089

You will need to consider that you may need to drill new installations to install both the drawer slide and the bracket. You'll also need to determine if these parts will fit into the space given how your existing bracket and slides install to your drawers. Again, I cannot guarantee that these will work as a replacement.
