How to put 10-110 latch together

A quick learner from Vancouver, WA says:

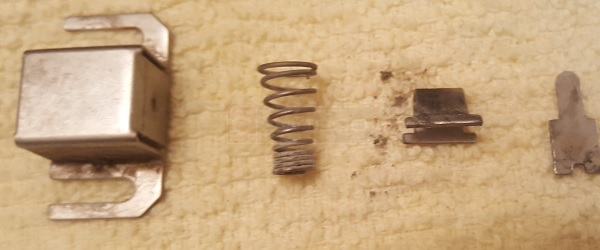

I took it off the door cause it fell apart is there only 3 pieces? How do I put it back togethet?
latch
Profile picture of Tom
Tom from SWISCO responded:
I'm not sure I've ever been asked this before. I don't think there's any trick to putting the 10-110 back together if it springs apart, you just need to put the pieces in as they were before. Look at this underside view of the 10-110, this should give you a good idea of how the 10-110 is put together.
Interior detail of 10-110
