How to replace the 81-265

Quick Learner from California

Nov 22, 2016 8:07 pm

I also found these rollers on this site. My question is how to remove and replace them.There is one screw on each corner of door frame (4) total. Do I need to take frame apart to slide them in or do they pop in with a little persuasion from a hammer?

5 Replies

Tom from SWISCO

Nov 23, 2016 1:09 pm

To replace these roller assemblies, you need to remove the door and lay it on top of a pair of saw horses or on a table. Remove the two bottom frame screws and then use a block of wood an hammer to carefully tap off the bottom rail. That should allow you to slide out the old roller assembly and slide in the new. When you finish installing the rollers, tap on the bottom rail, screw on the frame screws, and reinstall the door.

Professional from CA

Nov 23, 2016 1:59 pm

The screw port that holds the roller will likely be crimped on both sides to keep the roller from moving around. This will need to be spread on the side closest to the end. I would still like to see an end view of the bottom rail. I keep asking and no one has provided one. These rollers have no bearings and I can't imagine that no better roller can be substituted.

Home Owner from CA

Jan 16, 2018 1:47 pm

Just had to replace two rollers on my Likit door.

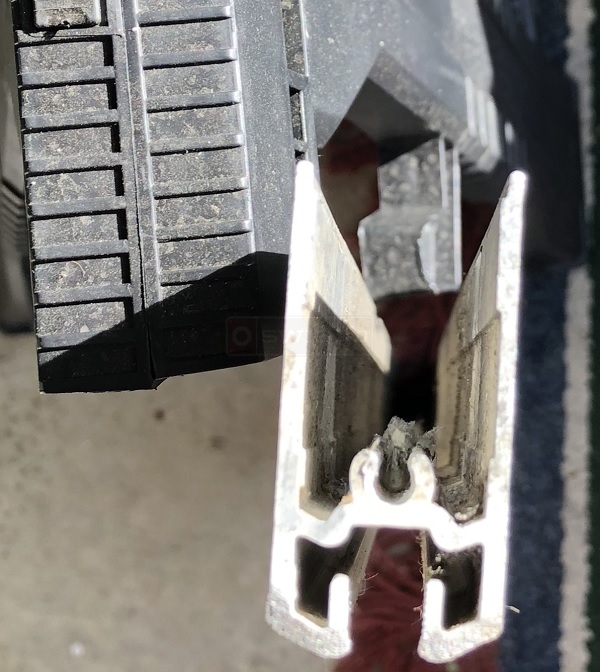

Attached is an end view of the bottom rail.

As the above response mentioned, the channel was crimped on both sides of the roller to keep the roller from moving when you slide the door.

I tried un-crimping but could not get the rollers out. Not sure if the sliders were also glued in, but I couldn't slide nor chisel the old rollers out. A Dremel is too small to reach. I still have part of the original rollers stuck in the groove. It was so bad that I mangled the groove so there's no chance of removing the old one. Luckily, I was able to manually put two new rollers in new locations so at least I got it to work. Was hoping to put three or four rollers but I can't slide the additional rollers into the groove.

Dave Sr. from SWISCO

Jan 24, 2018 1:48 pm

What I have done in situations like this was to secure the rail in a bench vise to hold it in place. Then I would use a type of awl and a hammer and try to get up under the piece in the groove. This should spread the groove and should pop the broken piece up out of the groove. Then when you are finished you can use a set of pliers to close up the groove. If you aren't comfortable with this project you may want the help of a local handy person.
