Hung Window Balance

Question

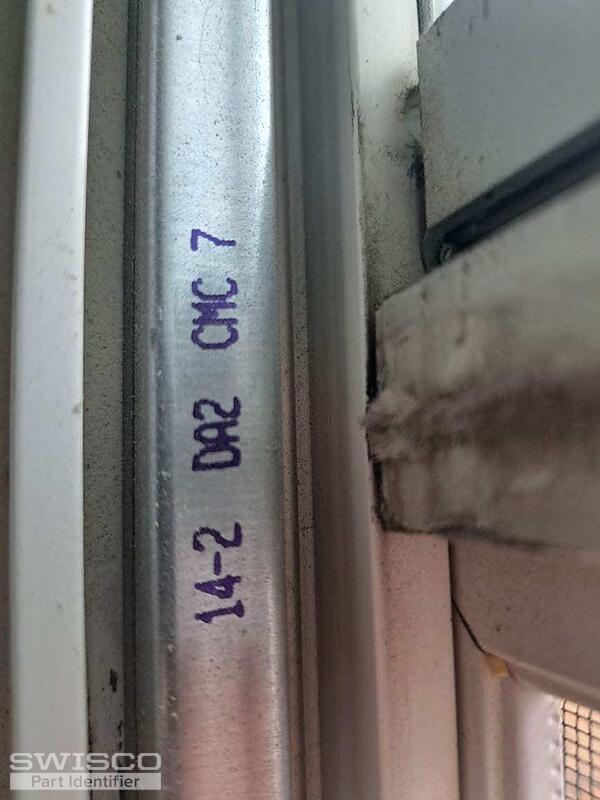

Hello, looking for a match to for this window balance. Can please forward me the correct match for this.  Thank you.

Jasmine · Accepted Answer

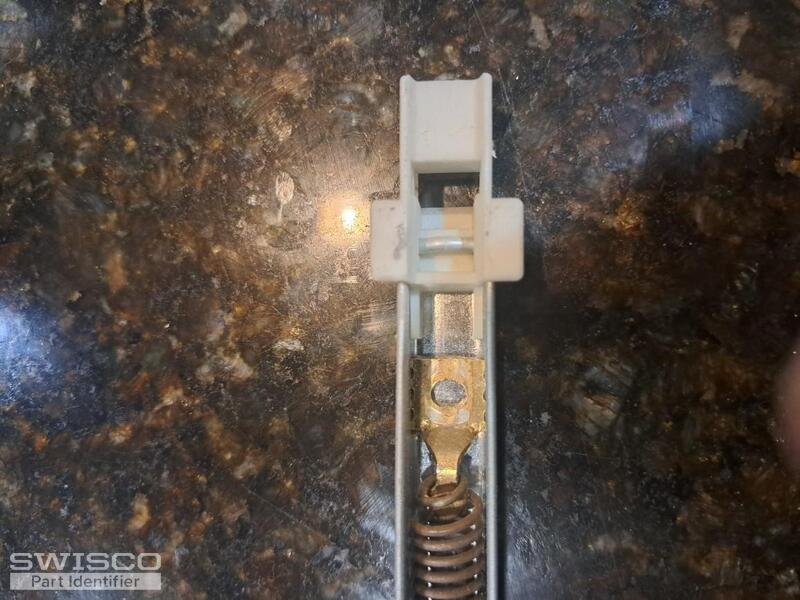

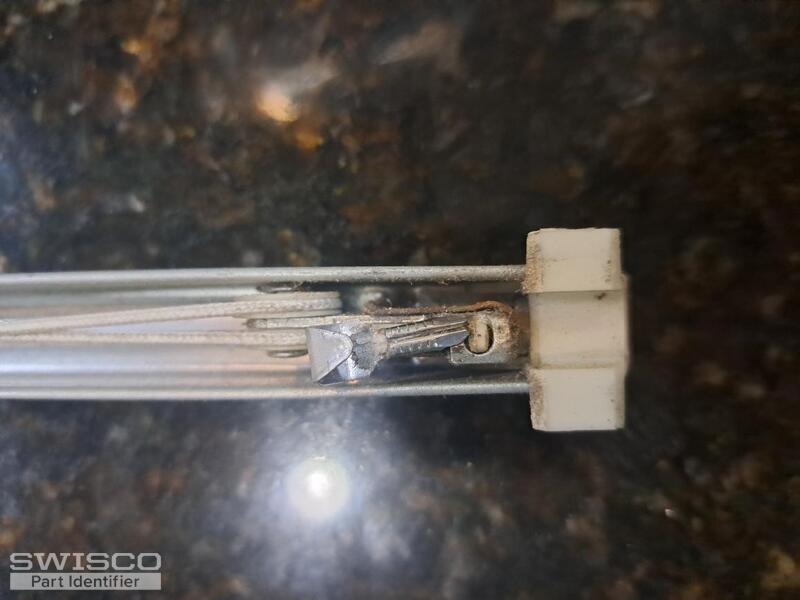

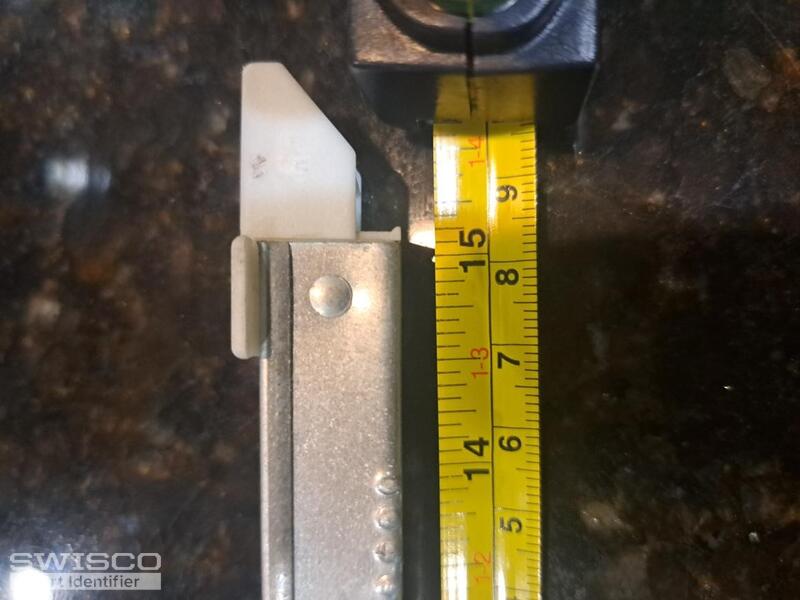

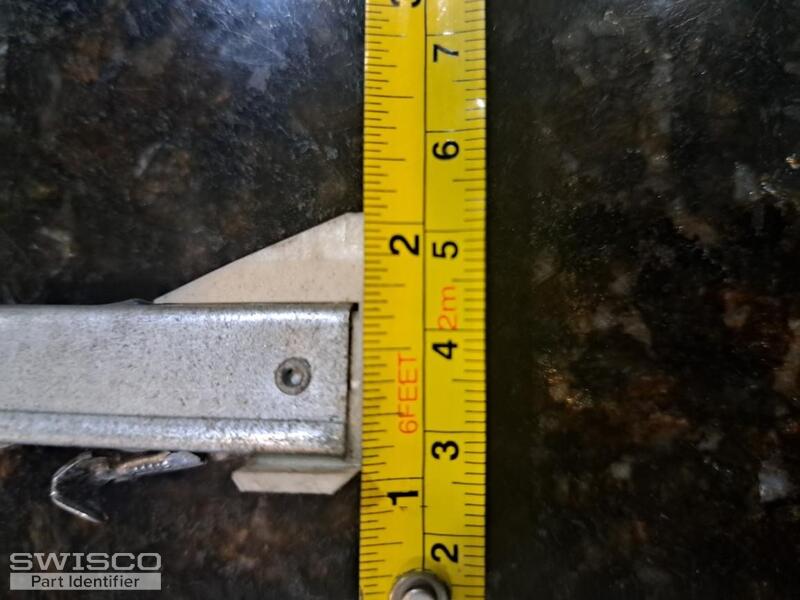

Hey there! Your balances look like they could be either the S380-15 with a 1" shoe or the S385-15 with a 1-3/32" shoe, which both have a channel length of 15". To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe. Let me know if it does not match either measurement.

You'll need to select the 1420 stamp for a 6 to 10lb window.

Comparison of the S378, S380 and S385 balance shoes.

You'll need to select the 1420 stamp for a 6 to 10lb window.

Comparison of the S378, S380 and S385 balance shoes.
