Hurd Sliding Patio Door

Home Owner from Fargo, ND
Hello,

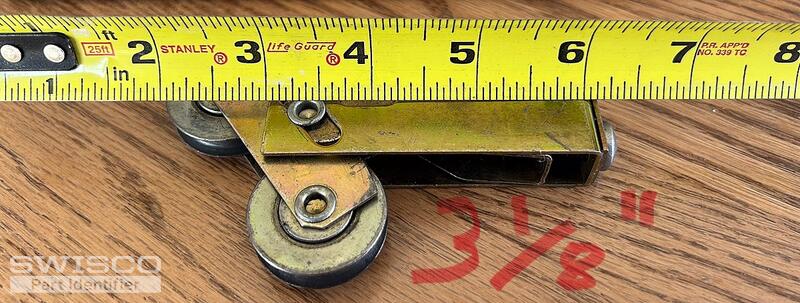

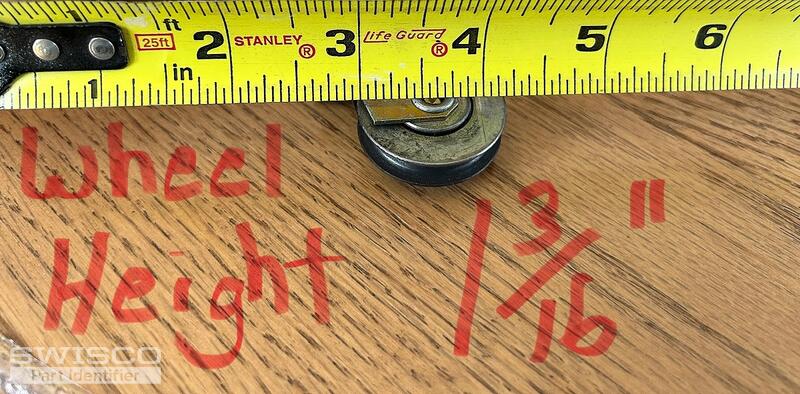

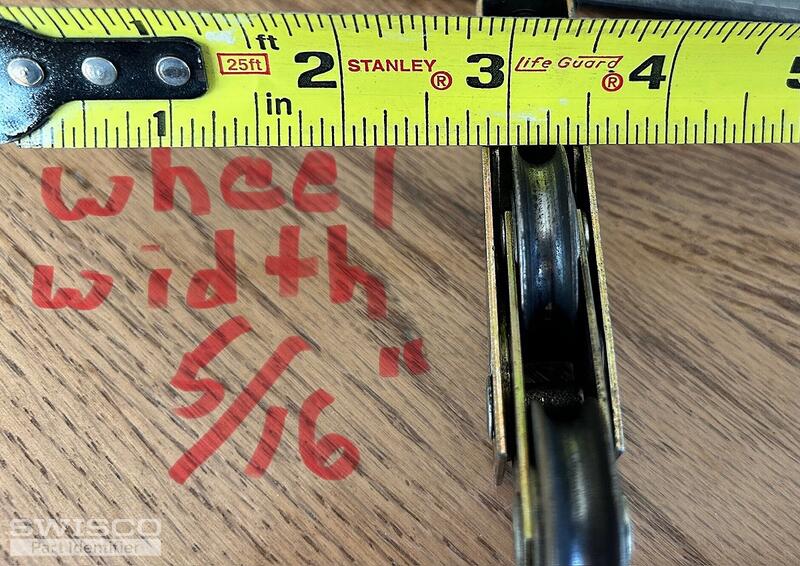

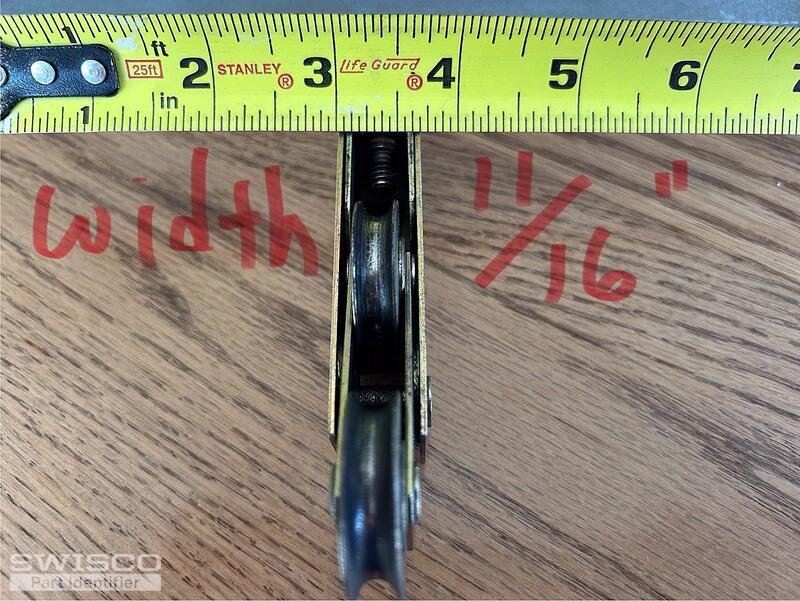

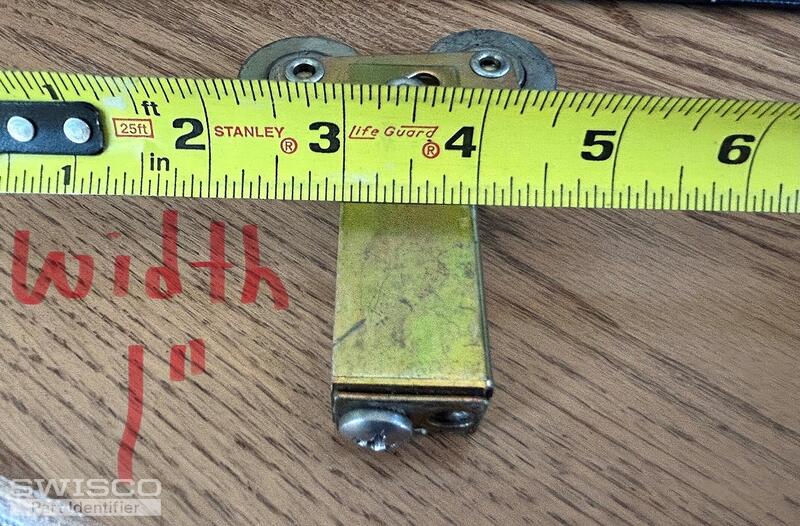

Hoping you can help me identify the correct roller for my Hurd sliding patio door, it's about 24 years old. Body height is 1".

Please let me know if questions, looking forward to your reply.

Thanks!
5 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for reaching out to us! Your patio door tandem roller can likely be replaced with our 81-158 Dual Roller Assembly. To confirm, be sure to double check the dimensions in comparison with yours. The main difference between this roller and your existing roller is the gap at the top but that should not make a difference in the installation.

Take a look and see what you think!

Alternate image for 81-158
Alternate image for 81-158

Home Owner from Fargo, ND
Thank you for looking. I was thinking it could also be 81-155, what are your thoughts?

Thanks!
Jasmine
Jasmine from SWISCO
SWISCO
Expert

That could be a fit, however, you'll need to be sure to review and compare the measurements. The body height for the 81-155 is 1-1/32", so you'll need to be sure that it would fit into the bottom of the door properly. It is a small difference, so it may still work.
