Hurd awining bar operator fix

Handy Person from Boulder, CO

Jul 9, 2025 12:15 pm

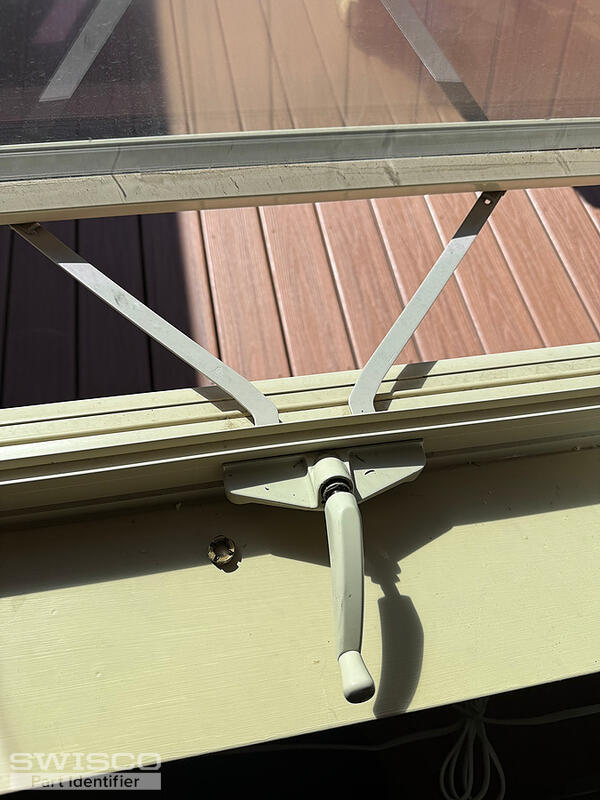

The screw the crank operates seems to be stripped, looking for replacment parts. Possible guide bar operator replacemnent.

4 user uploaded images

2 Replies

Casey from SWISCO

Jul 14, 2025 10:50 am

Hello,

The spline that the handle is attached to is not available separately, so the operator will need to be replaced, unfortunately. Take a look at the 39-348, used with the 36-078 shoe stud sold separately. Review the specifications compared to your assembly. Thanks for posting!

detail of 39-348

Dimensions for 36-078
