Hurd crank out window

Quick Learner from New hampshire

Sep 22, 2021 6:35 pm

The brass insert popped out, seems like some threads from the casing were stuck in the threads of the insert. Can't get the brass insert back in. Seems like the casing a stripped.

No other markings on the window, except on the handle.

Can the mechanism be replaced?

Does the window have to be replaced?

1 user uploaded image

6 Replies

Emily from SWISCO

Sep 28, 2021 11:03 am

Hi there!

It looks like your worm gear is stripped. When this happens, I'm afraid it means the entire operator needs to be replaced. We'd be happy to help, but we'll need to see a picture of your operator with the window open so that the arms that move the sash are fully visible.

Thank you!

Quick Learner from New hampshire

Sep 28, 2021 11:57 am

Actually, Im able to screw in the worm gear (with splines) just fine. Its that round brass bushing piece I cant get into the housing. I assume the lower wood trim needs to be removed to replace the mechanism. That said, for a picture what view of what item do you need?

Emily from SWISCO

Sep 29, 2021 8:45 am

I'm afraid we don't sell a replacement for that little brass piece. We'd be happy to help identify your operator, but we'd like to see a picture of the operator with the window open so that the arms that move the sash are fully visible. That will help us narrow down your options.

Quick Learner from New hampshire

Sep 30, 2021 8:49 pm

Hey Emily. Ultimately we are on the same page, but what seems stripped IMO is the crank housing that the brass bushing threads into. But, agreed the operator needs replacement.

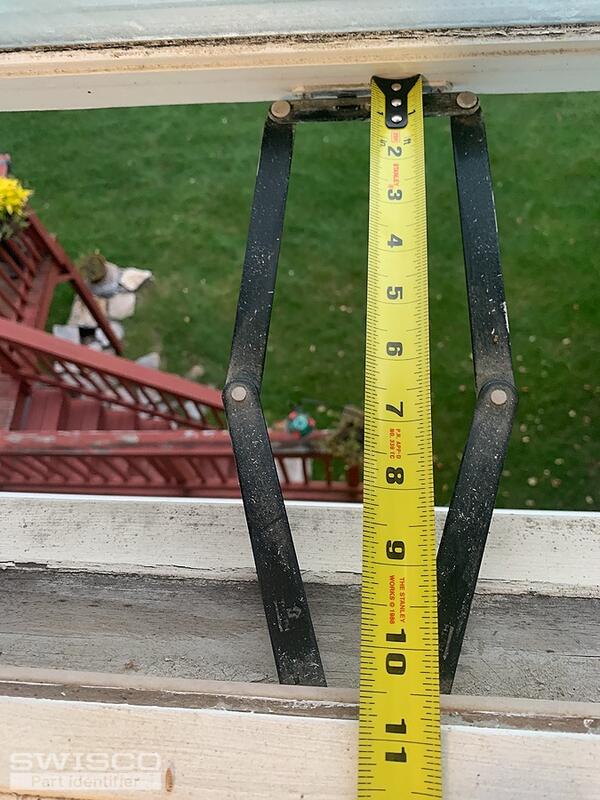

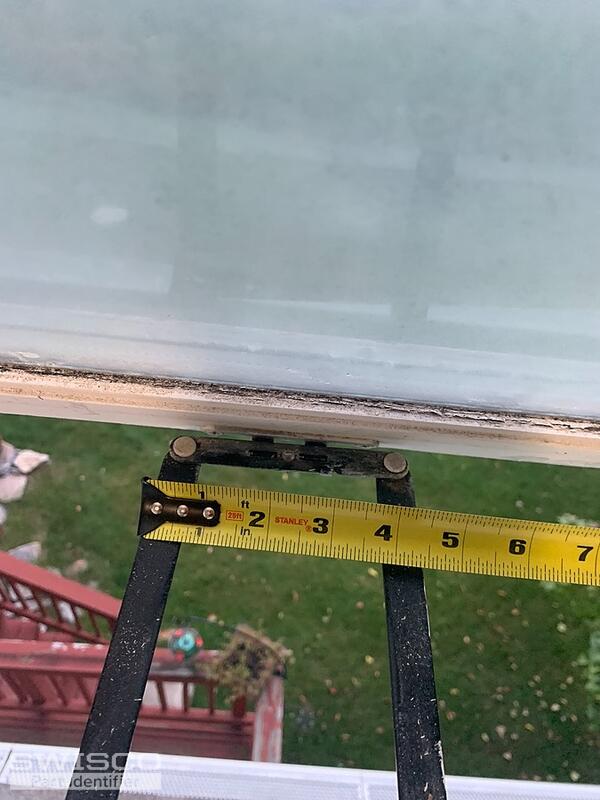

So, here are some additional pics of the components and the operator fully extended. Also, if it helps I did find a data plate that has Hurd Millwork Co, CSE / AWN 1993

Additionally, where do you think that lower wood sash covering the operator comes off from? Where it looks like the bottom of the operator housing or where there's a faint line near the top of the elevator housing?

5 user uploaded images

Emily from SWISCO

Oct 1, 2021 10:03 am

Thanks for the additional pictures! Start by taking a look at our 39-083, 39-140 and 39-143 operators. Look over the dimensions for each and see if any match what you need.

As for the lower wood sash covering you're referring to, I'm not quite sure what you're asking. Are you looking to remove it?
