Hurd patio Handle and lockset

Handy Person from Connecticut
I am looking to replace a broken handle/lock for my sliding glass patio door. I believe the handle is the original from when the house was built in 1994. The door is a Hurd. The markings on the original handle says PAT# 5,092,144. P/N 120-60. It seems like I need the inside handle with backplate and locking lever, outside handle with lock and key, mortise set and the latch that goes on the frame.

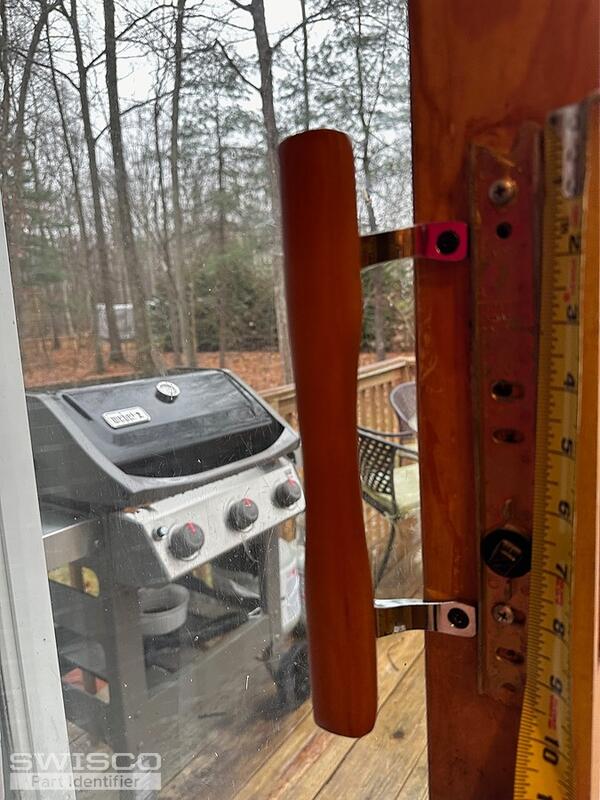

The handle in the 1st picture is not original, but the backplate is original. Looking for an upgrade. Thank you!
4 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Unforutnately, we do not carry a match for your original handle set but your mortise lock resembles the 82-227. This lock is commonly used with the 82-030 handle set. Take a look and see if the 3-15/16" hole spacing matches yours. If so, this could work but keep in mind that it does not have the same offset latch at the top, which will leave the top hole exposed. If the top hole is where the handle engages with the lock, you may need to drill new installation holes to install the handle in the correct position. Look it over and see what you think.

Hole center dimensions for 82-030
Hole center dimensions for 82-030

Dimensions for 82-030
Dimensions for 82-030

Alternate image for 82-227
Alternate image for 82-227

Handy Person from Connecticut

OK thank you! I'll look into this as you recommended.

Todd

Casey
Casey from SWISCO
SWISCO
Expert

Great, just let us know if you need anything else.
