I am looking for a 1-3/4" window sash cam/guide
Handy Person from San Luis Obispo
Oct 16, 2024 5:38 pm

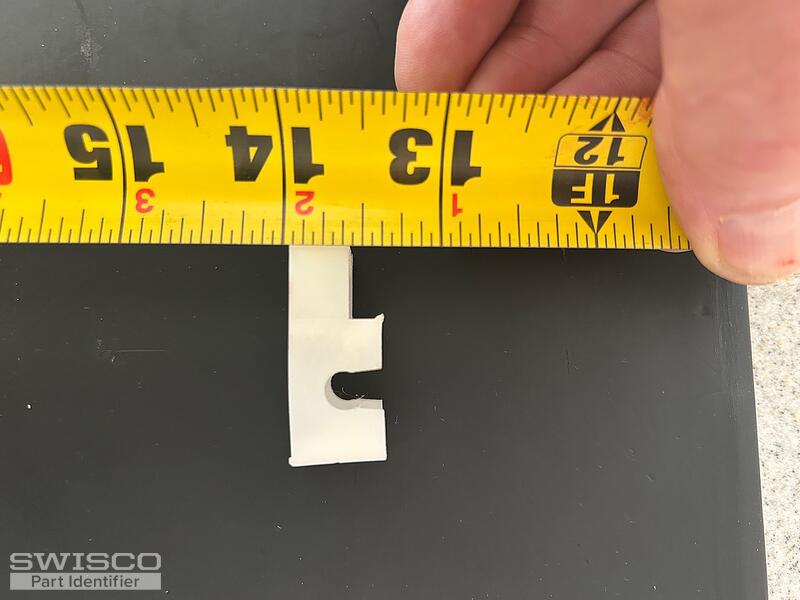

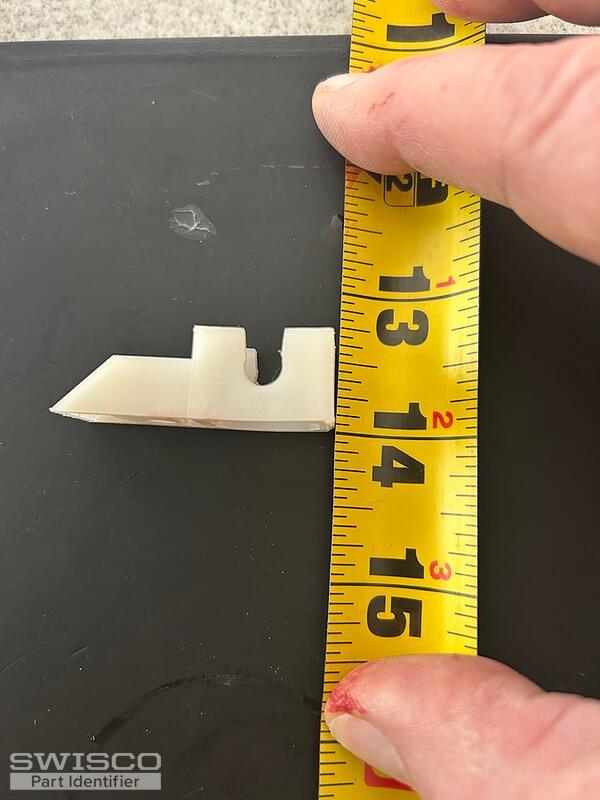

I have Vinly Non-tilt Radco windows with 26-5 Caldwell series 300 block and tackle balance, which has a winged top guide and a non-winged bottom guide. I am looking for replacement window sash cam/guide that is 1-3/4" by 5/8" wide. It has two section, back section is 9/16" tall by 7/8" in length and front section is 3/8" tall by 7/8" long. One screw hole in the front section
5 user uploaded images
4 Replies
Jasmine from SWISCO
Oct 22, 2024 10:03 am
Thanks for writing in! I'm happy to make a recommendation for the balances, if you are looking to replace them; I'll just need to see photos of the top and bottom attachments you've mentioned.
Regarding the top sash guide you are searching for, we do not have a direct replacement for it, unfortunately. It seems that Radco may have stopped making them some time ago, so I can't be sure that they're available any longer. That said, we've recommended our 18-008 and 18-009 in the past. Take a look over each of their dimensions and see what you think!
You may need to make a few modifications to install them, especially the 18-009. Although, you should keep in mind that altered parts cannot be returned or refunded.
Detail of 18-008
Alternate view of 18-008
Detail of 18-009
Side view of 18-009
Handy Person from San Luis Obispo
Oct 22, 2024 12:08 pm

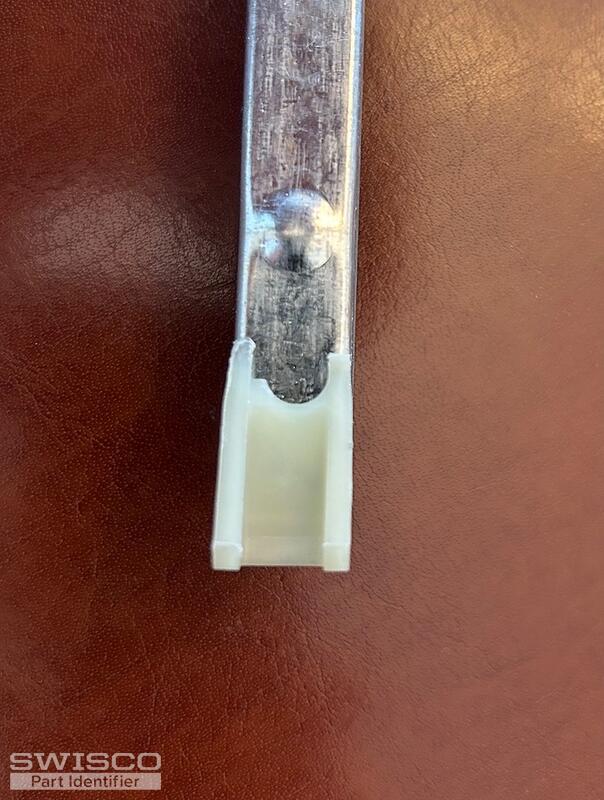

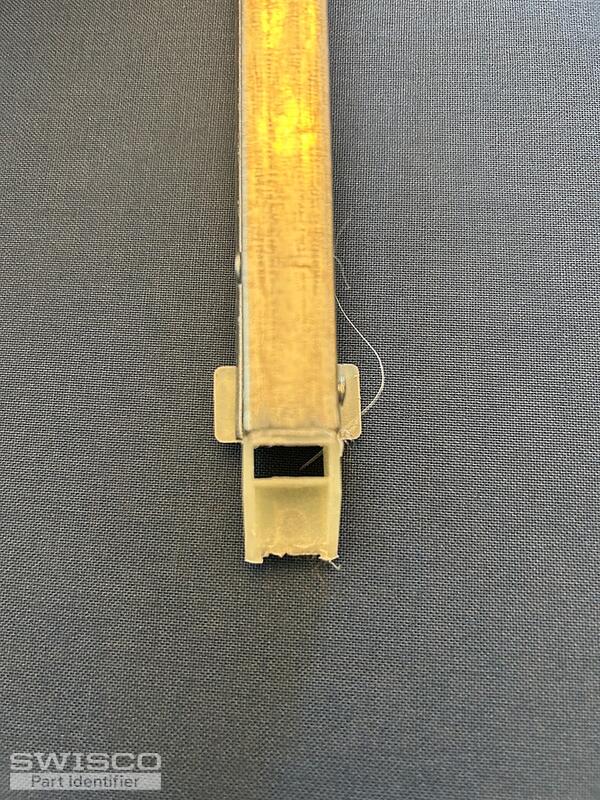

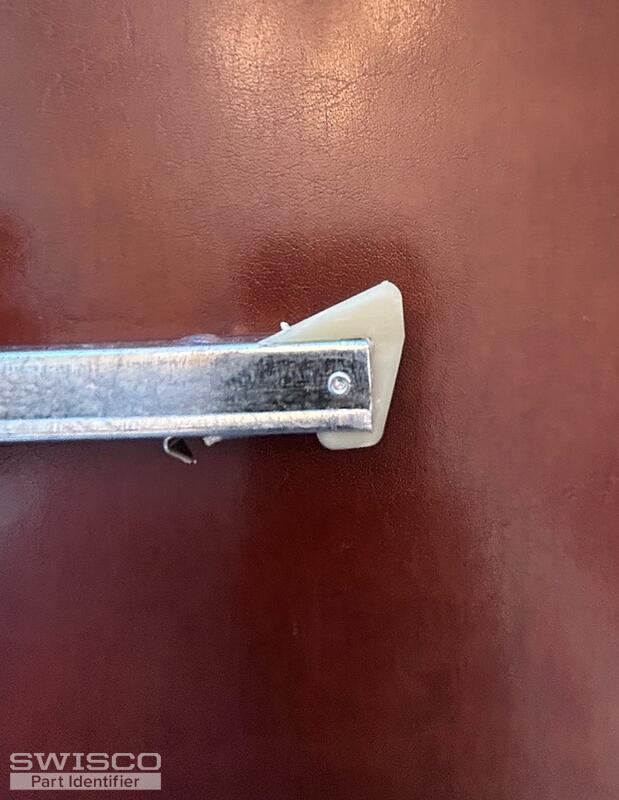

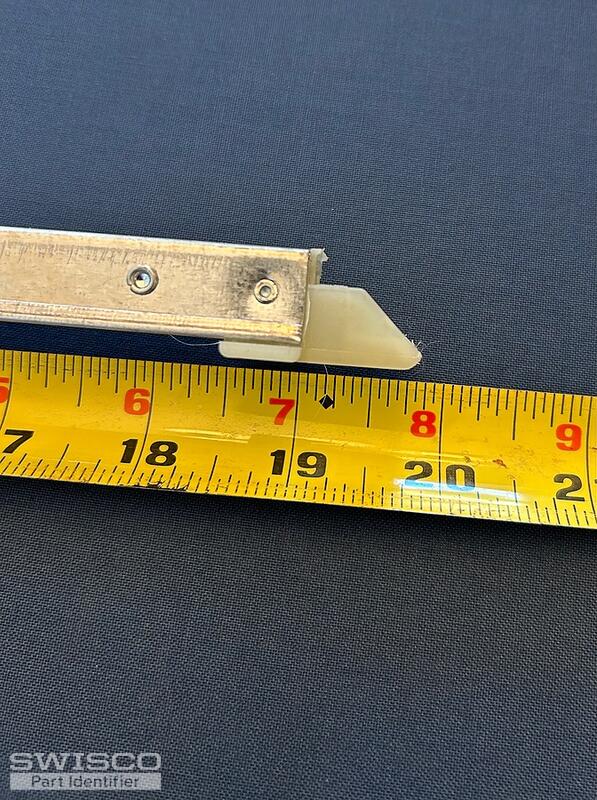

In your reply you requested photos of balance top and bottom guides to make a recommendation. The winged top guide is the blue background and bottom is the brown background
5 user uploaded images
Jasmine from SWISCO
Oct 22, 2024 12:24 pm
Thanks for the photos. I recognize the top and bottom. I've narrowed down the balance replacement; although, I did forget to ask for one more photo.

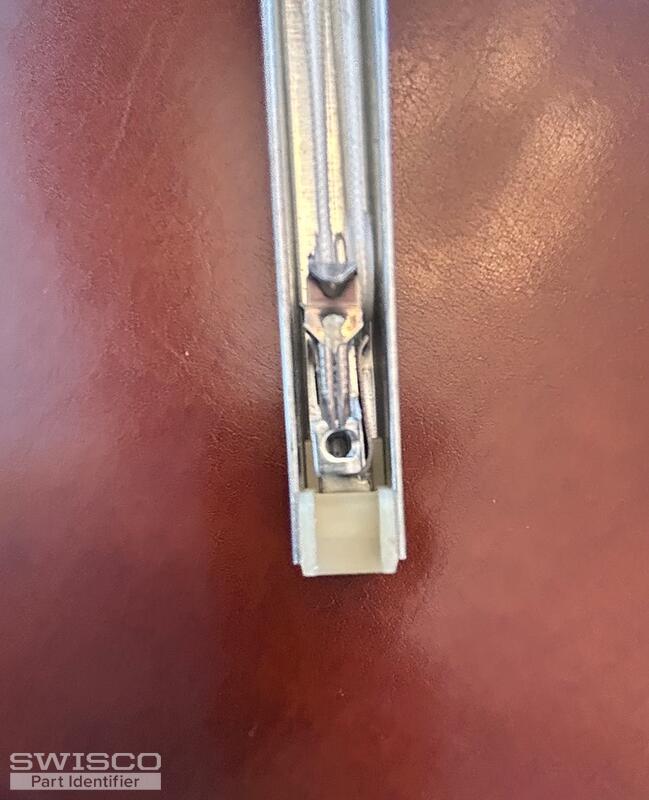

Please provide a photo of the bracket that connects pulley system and spring at the center of the balance. This is where the spring and string meet in the middle.
